DBR-06 SERIES RESISTOR BOX
BDT 21,160/-
Product Details
Brand: MCP
Model: DBR-06
Country Of Origin: China
Features
-
High accuracy to 1‰
| Decade (1) Range / Max. Current | 0.1 Ω × 10 700 mA |
| Decade (2) Range / Max. Current | 1 Ω × 10 700 mA |
| Decade (3) Range / Max. Current | 10 Ω × 10 200 mA |
| Decade (4) Range / Max. Current | 100 Ω × 10 70 mA |
| Decade (5) Range / Max. Current | 1000 Ω × 10 20 mA |
| Decade (6) Range / Max. Current | 10000 Ω × 10 7 mA |
| Dimensions (W×H×D) | 285 × 140 × 215 mm |
| Weight | 2.2 kg |

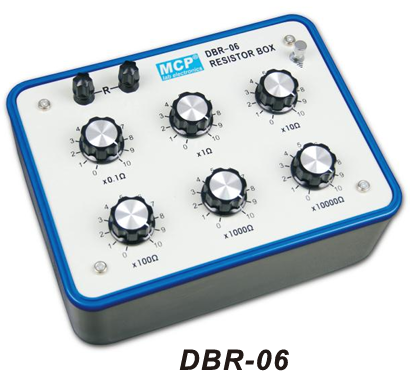

The DBR‑06 Resistor Box is a high‑precision instrument for electrical testing and calibration. Featuring six decades with ranges from 0.1 Ω to 10 kΩ, it delivers exceptional accuracy of 1‰, making it suitable for advanced laboratory applications. The sturdy cabinet ensures durability and safety, while its design supports reliable performance in demanding environments. Widely adopted in universities, vocational colleges, and research labs, the DBR‑06 is an essential tool for teaching resistance principles and supporting professional circuit calibration experiments.
The DBR‑06 Resistor Box is a precision laboratory instrument designed for resistance selection and calibration. With six decades ranging from 0.1 Ω to 10 kΩ, it offers ultra‑high accuracy to 1‰ (0.1%). Built for professional testing environments, the DBR‑06 ensures reliable performance in experiments and calibration tasks. Its robust design makes it ideal for advanced laboratories, universities, and research facilities requiring precise resistance control for circuit design and analysis.
