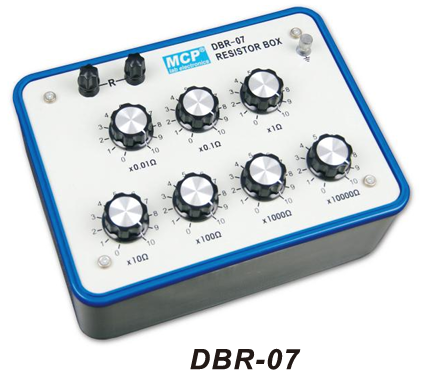

DBR-07 SERIES RESISTOR BOX
BDT 23,903/-
Product Details
Brand: MCP
Model: DBR-07
Country Of Origin: China
Features
-
High accuracy to 1‰
| Decade (1) Range / Max. Current | 0.01 Ω × 10 700 mA |
| Decade (2) Range / Max. Current | 0.1 Ω × 10 700 mA |
| Decade (3) Range / Max. Current | 1 Ω × 10 700 mA |
| Decade (4) Range / Max. Current | 10 Ω × 10 200 mA |
| Decade (5) Range / Max. Current | 100 Ω × 10 70 mA |
| Decade (6) Range / Max. Current | 1000 Ω × 10 20 mA |
| Decade (7) Range / Max. Current | 10000 Ω × 10 7 mA |
| Dimensions (W×H×D) | 285 × 140 × 215 mm |
| Weight | 2.2 kg |
The DBR‑07 Resistor Box is a high‑precision instrument for electrical testing and calibration. Featuring seven decades with ranges from 0.01 Ω to 10 kΩ, it delivers dependable accuracy for advanced laboratory applications. The sturdy cabinet ensures durability and safety, while its design supports reliable performance in professional environments. Widely adopted in universities, vocational colleges, and research labs, the DBR‑07 is an essential tool for teaching resistance principles and supporting circuit calibration experiments.
The DBR‑07 Resistor Box is a precision laboratory instrument designed for ultra‑fine resistance selection and calibration. With seven decades ranging from 0.01 Ω to 10 kΩ, it offers exceptional accuracy and reliability for advanced electrical testing. Built with a durable cabinet and rotary switches, the DBR‑07 ensures consistent performance in demanding environments. Compact yet powerful, it is ideal for universities, research labs, and professional calibration facilities requiring precise resistance control.
