Device 120V 30A
BDT 0/-
Product Details
Brand: Huazheng
120V 30A Battery Charging and Discharging Device General Battery Charge and Discharge Capacitance Test Equipment is a multi-functions equipment which is integrated into charge, discharge, regeneration and on line monitoring. It can reduce the enterprise cost and the maintenance staff...
HZCF-400 Battery Charge and Discharge Capacitance Test Equipment. This multifunctional equipment integrates charging, discharging, regeneration, and online monitoring capabilities into a single comprehensive system. It significantly reduces enterprise costs and minimizes the labor intensity of maintenance personnel, providing a complete scientific testing solution for batteries and UPS power supply maintenance.
| General | Battery Charge and Discharge Capacitance Test Equipment. This multifunctional equipment integrates charging, discharging, regeneration, and online monitoring capabilities into a single comprehensive system. It significantly reduces enterprise costs and minimizes the labor intensity of maintenance personnel, providing a complete scientific testing solution for batteries and UPS power supply maintenance. |
| Application Areas |
UPS & data center battery maintenance - capacity verification, charge/discharge cycling, and health monitoring Telecom & substation DC systems - 120 V battery bank testing and preventive maintenance Power utilities & industrial plants - stationary battery bank commissioning and periodic testing Lead-acid, Ni-Cd & lithium battery fleets - unified test platform across multiple chemistries Battery service contractors - portable capacity testing with cell-level voltage acquisition Regeneration & recovery workflows - battery conditioning before redeployment or replacement decisions Online monitoring applications - continuous battery status tracking during operation |
| Environmental Conditions | . |
| Operating Temperature | -20°C to 55°C |
| Storage Temperature | -45°C to 70°C |
| Relative Humidity | â¤90% at 40Âą2°C (non-condensing) |
| Atmospheric Pressure | 70 kPa to 106 kPa |
| Power Supply | . |
| Main Input | AC 220 V Âą10%, single phase, 50 Hz |
| Charging Module Input | AC 380 V, 50 Hz |
| Battery System | . |
| Supported Battery Types | Lead-acid / Ni-Cd / lithium |
| Rated Battery String Voltage | 120 V |
| Charge and Discharge Voltage Range | 108 V to 144 V |
| Charge and Discharge Performance | . |
| Charging Current Range | 2 A to 30 A |
| Discharging Current Range | 2 A to 30 A |
| Measurement | . |
| Voltage Resolution | 1% |
| Current Resolution (Charge/Discharge) | 1% |
| Cell Voltage Monitoring | . |
| Supported Cell Voltages | 2 V / 6 V / 12 V |
| Cell Voltage Resolution | 2 V/6 V: 0.001 V; 12 V: 0.01 V |
| Packing List | Host machine: 01 Nos |
| AC220V power line | 01 Nos |
| Discharge cable(One red and one black) | 02 Nos |
| The entire group of voltage acquisition line | 01 nos |
| Single voltage collector | 01 Nos |
| Single voltage collector is connected | 01 Nos |
| 433 antenna | 01 Nos |
| Touch pen | 01 Nos |
| SD card/card reader | 01 nos |
| User Manual | 01 nos |
| Product certification | 01 Nos |
| Packing wooden box | 01 Nos |

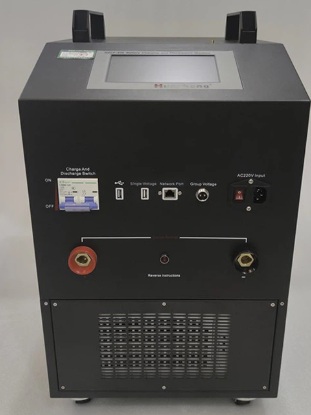

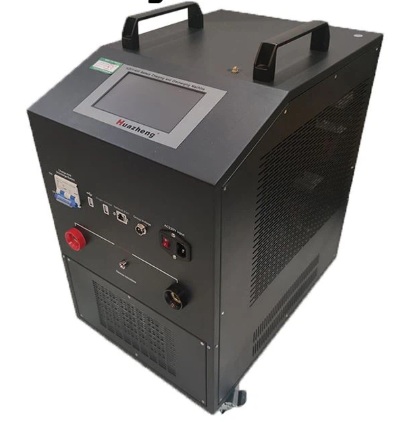

Huazheng HZCF-400 Battery Charging and Discharging Device – 120V 30A
The Huazheng HZCF-400 Battery Charging and Discharging Device is a multifunctional battery testing and maintenance instrument designed for battery charging, controlled discharging, capacity evaluation, regeneration and online monitoring.
With a 120V, 30A rating, the HZCF-400 provides an integrated solution for industrial battery maintenance, helping technicians evaluate battery performance and manage battery maintenance operations.
The equipment is suitable for battery maintenance departments, electrical substations, power plants and industrial testing facilities.
Key Features
- Multifunctional Operation: Integrated battery charging, discharging, regeneration and monitoring.
- 120V 30A Rating: Designed for battery testing and maintenance applications.
- Battery Capacity Testing: Supports battery discharge testing for capacity evaluation.
- Battery Regeneration: Provides battery regeneration functionality for maintenance applications.
- Online Monitoring: Supports monitoring during battery testing operations.
- Digital Display: Convenient interface for operating and monitoring the equipment.
- Integrated Design: Combines multiple battery maintenance functions in one instrument.
- Maintenance Efficiency: Helps streamline battery testing and maintenance activities.
Applications
- Substation DC battery system maintenance.
- Industrial battery capacity testing.
- Power plant battery maintenance.
- UPS battery system testing.
- Battery charging and discharging operations.
- Electrical utility maintenance departments.
- Battery testing and maintenance laboratories.
- Engineering universities and polytechnic institutes.
Huazheng HZCF-400 Battery Charging and Discharging Device – 120V 30A
The Huazheng HZCF-400 Battery Charging and Discharging Device is a multifunctional battery testing and maintenance instrument designed for battery charging, controlled discharging, capacity evaluation, regeneration and online monitoring.
With a 120V, 30A rating, the HZCF-400 provides an integrated solution for industrial battery maintenance, helping technicians evaluate battery performance and manage battery maintenance operations.
The equipment is suitable for battery maintenance departments, electrical substations, power plants and industrial testing facilities.
Key Features
- Multifunctional Operation: Integrated battery charging, discharging, regeneration and monitoring.
- 120V 30A Rating: Designed for battery testing and maintenance applications.
- Battery Capacity Testing: Supports battery discharge testing for capacity evaluation.
- Battery Regeneration: Provides battery regeneration functionality for maintenance applications.
- Online Monitoring: Supports monitoring during battery testing operations.
- Digital Display: Convenient interface for operating and monitoring the equipment.
- Integrated Design: Combines multiple battery maintenance functions in one instrument.
- Maintenance Efficiency: Helps streamline battery testing and maintenance activities.
Applications
- Substation DC battery system maintenance.
- Industrial battery capacity testing.
- Power plant battery maintenance.
- UPS battery system testing.
- Battery charging and discharging operations.
- Electrical utility maintenance departments.
- Battery testing and maintenance laboratories.
- Engineering universities and polytechnic institutes.
