Multi-pulse Cable Fault Testing Machine
BDT 0/-
Product Details
Brand: Huazheng
Multi-pulse Cable Fault Testing Machine Overview The HZ-A30 multi-pulse cable fault tester is a high-performance device that integrates a complete set of cable fault testing functions. Developed independently based on the characteristics of the cable fault testing industry, it closely.
The HZ-A30 multipulse cable fault tester is a high-performance device that integrates a complete set of cable fault testing functions. it closely follows the development direction of the international power industry while catering to the rapid growth of the domestic power sector, offering exceptional stability.
The system integrates wireless communication technology, photoelectric knob mouse technology, and expandable Bluetooth technology, significantly enhancing the instrument's functionality and value. These features also greatly improve on-site operation convenience and serviceability.
| Main Unit | Display & Interface: Features a 12.1-inch high-brightness LCD screen with knob mouse control, designed for outdoor field use. Powered by a lithium battery for convenient on-site testing. The engineering plastic case is shockproof, moisture-proof, and highly stable. |
| Connectivity & Sampling: | Equipped with a Wi-Fi module and SIM interface for wireless remote data transmission and mobile terminal technical support. Integrated communication technology ensures stable signal acquisition. The main unit automatically selects from eight sampling frequencies ranging from 3.125 MHz to 400 MHz, with adaptive pulse width to meet testing requirements for cables of varying lengths. |
| Waveform Analysis: | The software automatically identifies and searches for inflection points in three test waveforms: low-voltage pulse method, impulse current method, and multiple pulse method. Fault waveform inflection points are automatically locked, and the fault distance is automatically read and displayed. |
| Waveform Display & Processing: | Waveforms are displayed in three areas on the same screen, with up to ten measured waveforms randomly displayed for selection. Supports both automatic and manual waveform card verification, with functions for storing, replaying, and analyzing test waveform data. |
| Multi-Pulse Generator: |

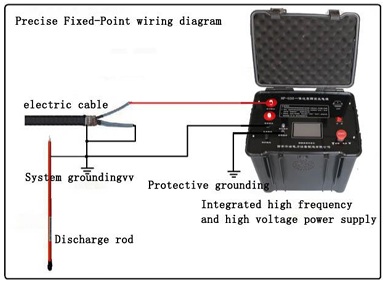

The unique multi-pulse generator design generates ten low-voltage short-circuit pulse waveforms in a single discharge, automatically optimizing the standard waveform and significantly reducing interference from large oscillations. Pinpointing Instrument |
| Noise Filtering & Path Detection: |
Utilizes dual-selection technology with noise filtering, directly displaying the distance variation between the test point and fault point digitally, while simultaneously detecting cable path direction. Bluetooth Connectivity: Supports mobile phone app connectivity. Via Bluetooth, the mobile phone and headset connect to enable two-person simultaneous pinpointing using a single probe. |
| Remote Assistance & Training | Supports remote expert assistance for waveform analysis, case sharing, teaching and training, and simulated exams, accessible anytime, anywhere. |
| Parameters |
Test Capabilities The tester can detect various main insulation faults in power cables of different voltage levels, cross-sections, media, and materials, including: Open circuit Short circuit Low resistance faults High resistance leakage faults High resistance flashover faults Display & Interface Display: 12.1-inch industrial-grade LCD screen (Linux operating system) Storage: 32 GB electronic disk Languages: Chinese, English, Russian (switchable) Operation: Touch screen and rotary knob (touch screen function optional) Test Methods Low-voltage pulse method High-voltage flash method Multiple pulse method |
| Pulse Width / Amplitude | 100 ns – 10 μs, 120 V |
| Gain Adjustment | –20 ~ +40 dB |
| Output Impedance Matching | 120 Ω |
| Communication | Equipped with WIFI module and SIM interface for remote test data transmission |
| Test Distance | 5 m – 100 km |
| Minimum Test Distance (Blind Zone) | 5 m |
| Accurate Positioning Error | ±0.2 m |
| System Test Error | ＜ ±1% |
| Multiple Pulse Generator | Impulse voltage ≤ 40 kV |
| Resolution |
v / (2f) m (v: propagation speed, m/μs; f: sampling frequency, MHz) |
| Sampling Frequencies | 400 MHz, 200 MHz, 100 MHz, 50 MHz, 25 MHz, 12.5 MHz, 6.25 MHz, 3.125 MHz |
| AC Power Supply & Power Consumption | AC 220V ±10%, ≤15 W |
| DC Power Supply & Power Consumption | DC 12V (7 AH), ≤20 W |
Huazheng HZ-A30 Multi-pulse Cable Fault Testing Machine
The Huazheng HZ-A30 Multi-pulse Cable Fault Testing Machine is an advanced cable fault detection and location system designed for identifying and locating faults in underground power cables and electrical cable networks.
Featuring multi-pulse cable fault testing technology, the HZ-A30 integrates multiple cable fault testing functions into a comprehensive system. It is designed to support cable fault diagnosis, fault distance measurement, and fault location procedures in electrical power distribution and industrial cable networks.
The system is suitable for electrical utilities, power distribution companies, substations, industrial facilities, and professional cable maintenance teams.
Key Features
- Multi-Pulse Testing Technology: Supports advanced cable fault analysis and location.
- Comprehensive Fault Testing: Integrates multiple cable fault testing functions.
- Underground Cable Fault Detection: Designed for locating faults in underground electrical cables.
- Fault Distance Measurement: Helps estimate the distance to cable faults.
- Digital Testing Interface: Supports convenient fault analysis and measurement.
- Integrated Testing System: Combines essential cable fault testing equipment.
- Professional Field Applications: Suitable for on-site electrical cable fault investigation.
- Efficient Fault Diagnosis: Helps maintenance teams identify cable faults and reduce troubleshooting time.
Applications
- Underground power cable fault location.
- Electrical distribution network maintenance.
- Industrial power cable fault detection.
- Power utility cable testing.
- Electrical substation cable maintenance.
- Power plant cable fault investigation.
- Cable installation and maintenance projects.
- Electrical testing laboratories.
- Engineering universities and polytechnic laboratories.
Huazheng HZ-A30 Multi-pulse Cable Fault Testing Machine
The Huazheng HZ-A30 Multi-pulse Cable Fault Testing Machine is an advanced cable fault detection and location system designed for identifying and locating faults in underground power cables and electrical cable networks.
Featuring multi-pulse cable fault testing technology, the HZ-A30 integrates multiple cable fault testing functions into a comprehensive system. It is designed to support cable fault diagnosis, fault distance measurement, and fault location procedures in electrical power distribution and industrial cable networks.
The system is suitable for electrical utilities, power distribution companies, substations, industrial facilities, and professional cable maintenance teams.
Key Features
- Multi-Pulse Testing Technology: Supports advanced cable fault analysis and location.
- Comprehensive Fault Testing: Integrates multiple cable fault testing functions.
- Underground Cable Fault Detection: Designed for locating faults in underground electrical cables.
- Fault Distance Measurement: Helps estimate the distance to cable faults.
- Digital Testing Interface: Supports convenient fault analysis and measurement.
- Integrated Testing System: Combines essential cable fault testing equipment.
- Professional Field Applications: Suitable for on-site electrical cable fault investigation.
- Efficient Fault Diagnosis: Helps maintenance teams identify cable faults and reduce troubleshooting time.
Applications
- Underground power cable fault location.
- Electrical distribution network maintenance.
- Industrial power cable fault detection.
- Power utility cable testing.
- Electrical substation cable maintenance.
- Power plant cable fault investigation.
- Cable installation and maintenance projects.
- Electrical testing laboratories.
- Engineering universities and polytechnic laboratories.
