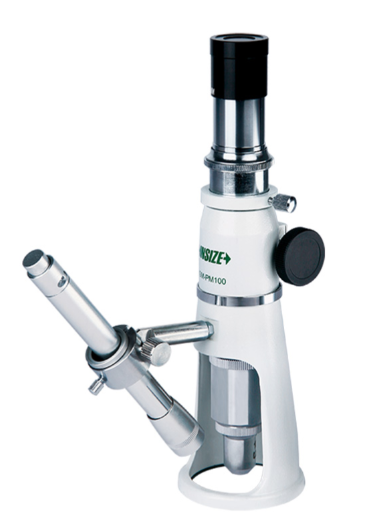

Portable Measuring Microscopes
BDT 29,790/-
Product Details
Brand: INSIZE
Model: ISM-PM20
Country Of Origin: China
Features:
10X eyepiece with graduation
10X eyepiece
pen light
focus adjustment
10X objective
| Total Magnification: | 20X |
| Eyepiece: | 10X with graduation |
| Objective: | 2X achromatic (NA: 0.05) |
| Graduation: | 0.05mm |
| Viewing Field: | Ã9mm |
| Working Distance: | 17.2mm |
| Weight: | 650g |
The INSIZE ISM-PM20 Portable Measuring Microscope is a compact, robust, and highly versatile optical instrument designed for on-the-spot dimensional measurement and inspection. Ideal for field work, factory floors, and quality control stations, this portable unit features a 10X measuring eyepiece with a built-in graduation scale (0.05mm resolution), allowing users to take precise measurements directly through the lens without the need for external digital displays.
Equipped with a 2X achromatic objective (numerical aperture: 0.05) and a total magnification of 20X, it provides a clear, flat field of view (Ø9mm) with a generous 17.2mm working distance, making it suitable for inspecting relatively large features or surfaces. The microscope features a 30mm focus range and is powered by an integrated LED light system. It comes complete with a detachable pen light for additional targeted illumination in dark areas, ensuring that surface details and edges are always clearly visible. The sturdy Ø63mm base provides stability during use, and its lightweight design (650g) makes it easy to carry anywhere.
INSIZE ISM-PM20 Portable Measuring Microscope – 20X Precision On the Go
Take precision measurement anywhere with the INSIZE ISM-PM20 Portable Measuring Microscope. Engineered for field engineers, machinists, and quality control inspectors, this compact and rugged instrument provides reliable optical measurement and inspection without the need for bulky benchtop equipment or a power outlet.
Key Features & Benefits:
-
Direct Optical Measurement: The 10X wide-field eyepiece is equipped with a precise graduated reticle (0.05mm), allowing operators to measure features directly through the lens with high accuracy.
-
High-Quality Achromatic Optics: Features a 2X achromatic objective lens that eliminates color fringing and provides a flat, sharp image across a wide Ø9mm viewing field.
-
Versatile Illumination: Equipped with built-in LED illumination for general surface viewing, plus a separate, high-intensity pen light to highlight deep features, edges, or dimly lit inspection areas.
-
Portable and Stable: Weighing only 650g with a compact Ø63mm base, it is easy to carry while remaining stable on flat surfaces. The 17.2mm working distance protects both the lens and the workpiece.
-
Complete Kit: Delivered ready for action, including the microscope main unit, a dedicated pen light, and two AAA batteries.
