Brand: INSIZE
Model: ISP-B420
Country Of Origin: China
Features:
Windows 10 operation system
Check, preset and measure cutting tools
Telecentric lens CCD camera system
Use Bosch or Festo pneumatic components, THK guideways and HEIDENHAIN scales
Built-in 113 cutting edge shapes, automatic recognition
Measuring modes: absolute, relative and incremental measurement
Measuring radius, angle, concentricity, axial runout, etc.
Storage of 3000 tool parameters
View, print and export measurement results
| Maximum Tool Diameter: | 420mm |
| Maximum Tool Height: | 420mm |
| Resolution: | 1Âĩm |
| Repeatability: | 2Âĩm |
| Standard Spindle: | ISO/SK/BT50 |
| Data Output: | USB, RS232 |
| Dimensions: | 1900Ã750Ã1750mm |
| Weight: | 274kg |

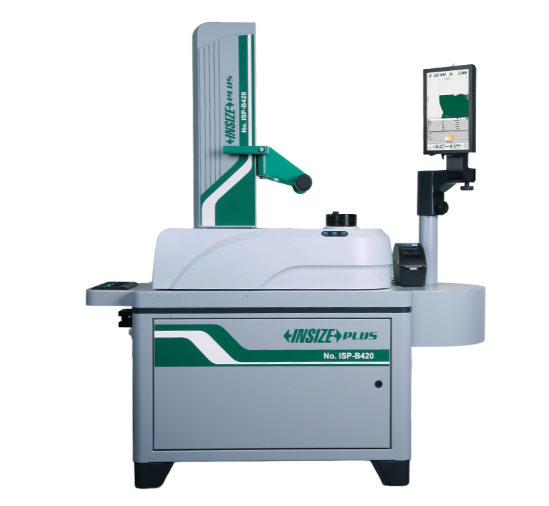

The INSIZE ISP-B420 Tool Presetter is a high-precision, CNC-integrated measurement system designed for checking, presetting, and measuring cutting tools offline. Powered by a Windows 10 operating system and displayed on a large 13.3" LCD touch screen, it features a telecentric lens CCD camera system that delivers high-contrast images with 1µm processing accuracy. Built with premium components including Bosch/Festo pneumatics, THK guideways, and HEIDENHAIN scales, it ensures exceptional reliability and longevity.
The system boasts automatic recognition of 113 built-in cutting edge shapes, streamlining the measurement of radius, angle, concentricity, and axial runout. The ISP-B420 can store up to 3000 tool parameters and 99 sets of converter parameters, automatically prompting users to verify zero positions at set intervals. It includes a built-in printer for creating tool labels, supports USB and RS232 data output, and features an air flotation button for effortless movement of heavy tools.
INSIZE ISP-B420 CNC Tool Presetter – Precision Cutting Tool Measurement
Optimize your machining operations and reduce costly spindle downtime with the INSIZE ISP-B420 Tool Presetter. Designed for modern CNC machine shops, this high-precision offline measuring system allows operators to quickly and accurately check, preset, and measure cutting tools before they ever enter the machine tool.
Key Features & Benefits:
-
Advanced Optical System: Equipped with a telecentric lens color CCD camera and dual LED light sources (surface and contour), providing crystal-clear images and automatic recognition of 113 built-in cutting edge shapes.
-
Premium Build Quality: Constructed with industry-leading components, including THK guideways, HEIDENHAIN linear scales, and Bosch or Festo pneumatic systems for unmatched durability and 1µm resolution/accuracy.
-
Powerful Software Suite: Running on Windows 10, the system supports absolute, relative, and incremental measurement modes. It measures radius, angle, concentricity, and axial runout, while storing up to 3000 tool parameters and automatically tracking zero positions.
-
Efficient Tool Labeling: Features a built-in printer to instantly generate and attach labels to your tools, ensuring error-free loading into CNC tool changers.
-
Flexible Spindle Options: Comes standard with a high-precision ISO/SK/BT50 spindle (including 360° and 4x90° clamping) and supports a vast array of optional converters for HSK and BT40/BT30 systems.
-
User-Friendly Operation: An air flotation button makes moving heavy tools effortless, and the large 13.3" LCD touch screen provides an intuitive interface for viewing, printing, and exporting measurement data.
