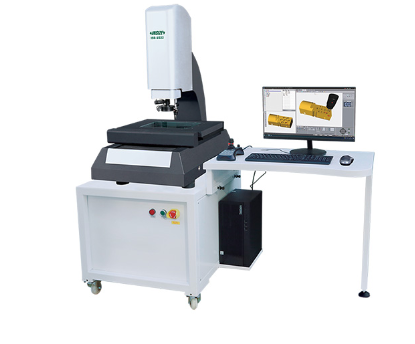

2D+3D Composite CNC Vision Measuring Systems
BDT 0/-
Product Details
Brand: INSIZE
Model: ISD-U322
Country Of Origin: China
Features:
Motorized zoom objective
Can import 3D drawings
Vision measurement and probe measurement can be used in the same program
Granite platform, column and stage, more stable
Double close-loop motion control, with precise positioning performance in high-speed movement
Panasonic servo control motor
40 independent surface light source, 200-step adjustment
Servo motors for X, Y, Z axis
| Measuring Range (X×Y×Z): | 300×200×200mm |
| Accuracy (Vision): | ≤(2+L/200)µm |
| Accuracy (Probe): | ≤(3+L/200)µm |
| Repeatability: | 1.5µm |
| Max. Workpiece Weight: | 20kg |
| Operation System: | Windows 10/11 |
| Dimensions: | 1400×900×1780mm |
| Weight: | 440kg |
The INSIZE ISD-U322 2D+3D Composite CNC Vision Measuring System is a state-of-the-art, fully automated metrology solution that seamlessly combines non-contact optical vision measurement with contact 3D probe measurement in a single program. Designed for complex dimensional inspection, it features a rigid granite platform, column, and stage to ensure maximum stability and vibration resistance during high-speed movements.
Equipped with a motorized zoom objective (0.7X~4.5X), a high-resolution 2M pixel color CCD camera, and a sophisticated programmable segmented ring light (40 independent sources), the ISD-U322 delivers exceptional edge detection and surface illumination. When contact measurement is required, users can utilize the optional Renishaw probe sets (MCP or TP20) to measure deep features, vertical surfaces, or complex 3D geometries, with the ability to import and compare against 3D CAD drawings. Driven by Panasonic servo motors with double closed-loop motion control, this system guarantees precise positioning and a repeatability of 1.5µm across its 300x200x200mm measuring range.
INSIZE ISD-U322 2D+3D CNC Vision Measuring System – Hybrid Optical & Probe Metrology
Achieve ultimate flexibility in dimensional inspection with the INSIZE ISD-U322 2D+3D Composite CNC Vision Measuring System. Designed for advanced manufacturing and quality control laboratories, this high-performance automated measuring machine uniquely combines the speed of optical vision measurement with the versatility of a touch-trigger 3D probe, allowing you to measure both delicate surfaces and complex volumetric features seamlessly.
Key Features & Benefits:
-
Combined Vision and Probe Capability: Operate vision tools and a Renishaw probe (optional MCP or TP20) within the same software program. This allows for measuring 2D profiles, deep bores, and 3D geometries in a single setup.
-
Heavy-Duty Granite Construction: The machine features a granite platform, column, and stage. This massive thermal stability minimizes vibration and ensures sub-micron accuracy during rapid, automated movements.
-
Precision Motion Control: Powered by Panasonic servo motors and a double closed-loop motion control system, the ISD-U322 guarantees precise, high-speed positioning on all X, Y, and Z axes with a 0.5µm resolution.
-
Advanced Optical System: Equipped with a motorized zoom objective (0.7X to 4.5X), a 2M pixel color CCD camera, and a programmable 40-segment ring light. This setup provides optimal lighting and magnification for everything from flat surface inspection to complex edge analysis.
-
3D CAD Comparison: Import 3D CAD drawings directly into the software to perform complete 3D model comparisons, dimensional analysis, and tolerance verification.
-
Complete Turnkey Setup: The standard package includes the main unit, PC, software (with probe module), controller, laser positioner, and calibration glass chart, making it ready for immediate deployment.
