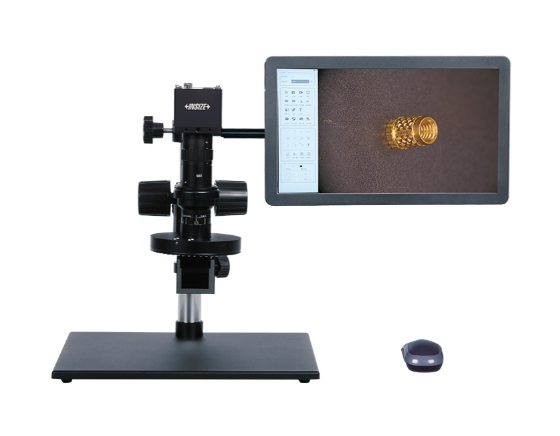

2D/Manual Rotation 3D Microscope (With Display)
BDT 446,695/-
Product Details
Brand: INSIZE
Model: 5328-ML10
Country Of Origin: China
Features:
Switchable between 3D monitoring and 2D measurement
Take pictures and videos, save to USB flash disk
Built-in software without computer, operated by mouse
Measurement results can be sent to Excel
Automatic white balance and exposure
Brightness, contrast ratio, gain are adjustable
| Sensor: | 1/2" CMOS, 2M Pixel |
| Resolution: | 1920×1080 (60fps) |
| Magnification: | 11X~94X |
| View Field: | 30.6×17~3.6×2mm |
| Focus Distance: | 86mm (2D) / 50mm (3D) |
| Dimensions: | 330×300×318mm |
| Net Weight: | 5.8kg |
The INSIZE 5328-ML10 2D/Manual Rotation 3D Microscope is an innovative, standalone optical inspection system that bridges the gap between traditional 2D measurement and advanced 3D observation. Featuring a unique switchable mode, the operator can easily transition between standard 2D measurement for flat components and 3D observation for viewing complex geometries.
In 3D mode, the base features a 360° manual rotation mechanism, allowing the user to tilt and rotate the workpiece to inspect it from multiple angles (0°, 90°, 180°, 270°), making it ideal for viewing sidewalls, threads, and deep features. The system is completely standalone, requiring no computer. It comes with a 13.3" LCD monitor and built-in software operated via an included mouse. The step-zoom lens (0.6X~5X) and independent 4-zone LED lighting provide excellent image quality. Users can capture photos or videos, save them to a USB drive, and export measurement results directly to Excel.
INSIZE 5328-ML10 2D/3D Microscope – Switchable 2D Measurement & 3D Observation System
Experience unparalleled flexibility in microscopic inspection with the INSIZE 5328-ML10 2D/Manual Rotation 3D Microscope. Designed for modern quality control labs, electronics manufacturing, and precision engineering, this innovative system allows operators to seamlessly switch between precise 2D measurements and dynamic 3D observation, all without the need for an external computer.
Key Features & Benefits:
-
Switchable 2D/3D Modes: Unlike traditional microscopes, this system features a specialized stage that can switch between flat 2D measurement and a manual 360° motorized rotation for 3D observation. This allows you to inspect the sidewalls, threads, and intricate contours of complex parts from any angle (0°, 90°, 180°, 270°).
-
True Standalone System: Operate the entire microscope using just the included mouse and the 13.3" LCD monitor. The built-in software is incredibly intuitive, offering measurement tools, assist tools, and real-time image processing.
-
High-Definition Imaging: The 1/2" CMOS sensor delivers crisp 1920x1080 resolution at a smooth 60fps. With the 0.6X~5X step-zoom lens, you can achieve magnification from 11X up to 94X.
-
Advanced Illumination Control: Equipped with an independent 4-zone LED light control ring, allowing you to precisely illuminate specific areas of the workpiece to eliminate glare and shadows, ensuring perfect edge detection.
-
Effortless Data Management: Capture high-resolution images and videos and save them directly to the included 16G USB flash disk. Measurement results can be seamlessly exported to Excel for reporting and analysis.
-
Complete Turnkey Kit: Comes ready to use with the main unit, 13.3" LCD monitor, 0.5X camera adapter, 1X auxiliary objective, calibration plate, white/black plate, mouse, and power adapter.
