Parallel Light Stereo Microscope
BDT 0/-
Product Details
Brand: INSIZE
Model: ISM-ZS200
Country Of Origin: China
Features:
Infinity parallel optical system and 20° inclined optical tube reduce fatigue
Coaxial illumination is optional for deep holes which cannot be observed by ring light
Aperture diaphragm is optional for large depth of field and high quality image
| Optical System: | Infinity Parallel |
| Objective: | 0.8X~8X (Zoom) |
| Zoom Ratio: | 1:10 |
| Eyepieces: | WF10X (Ã22mm) |
| Working Distance: | 78mm |
| Illumination: | Reflected and Transmitted LED |
| Weight: | 4.3kg |

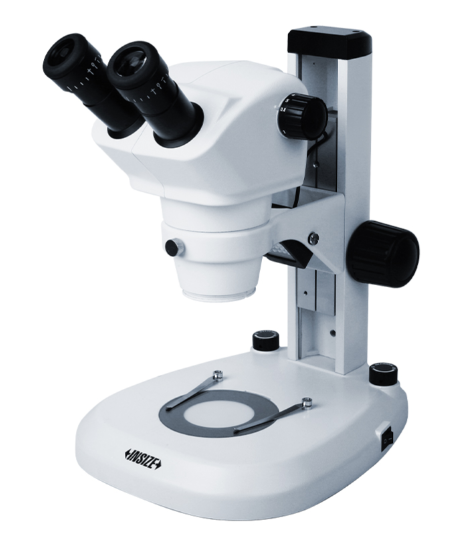

The INSIZE ISM-ZS200 Parallel Light Stereo Microscope is a premium optical inspection system engineered for prolonged, fatigue-free observation and advanced imaging capabilities. Unlike traditional Greenough stereo microscopes, it utilizes an infinity parallel optical system with a 20° inclined binocular tube, providing a comfortable viewing experience and eliminating eye strain. The parallel light path allows for the seamless integration of specialized accessories—such as an optical path splitter or coaxial illumination—directly into the optical axis, making it highly adaptable for complex tasks like deep-hole inspection or digital documentation.
Equipped with a 0.8X~8X zoom objective and a 1:10 zoom ratio, it offers exceptional versatility. The system features a generous 78mm working distance, providing ample space for tools and hands, and supports workpieces up to 72mm in height. Dual adjustable LED illumination (reflected and transmitted) ensures optimal lighting for any sample. The standard package includes 10X wide-field eyepieces (Ø22mm) with ±5 diopter adjustment, glass and white/black stage plates (Ø100mm), and an anti-dust cover, making it a complete turnkey solution for demanding quality control and assembly environments.
INSIZE ISM-ZS200 Parallel Light Stereo Microscope – Advanced Infinity Optics for Fatigue-Free Inspection
Achieve professional-grade visual inspection and assembly with the INSIZE ISM-ZS200 Parallel Light Stereo Microscope. Designed for quality control labs, electronics manufacturing, and precision engineering, this advanced stereo microscope utilizes an infinity parallel optical system to deliver sharp, true-color 3D images while significantly reducing operator eye fatigue.
Key Features & Benefits:
-
Infinity Parallel Optical System: By utilizing a parallel light path rather than a converging Greenough design, this microscope allows for the insertion of optical accessories (such as a coaxial illuminator or camera path splitter) directly into the light path without distorting the image. The 20° inclined viewing tube ensures maximum comfort during long work sessions.
-
Powerful 0.8X~8X Zoom: The 1:10 zoom ratio provides exceptional versatility, allowing you to seamlessly transition from broad overviews (0.8X) to detailed high-magnification inspections (8X) without losing focus.
-
Excellent Working Distance: With a 78mm working distance and the ability to accommodate workpieces up to 72mm high, there is plenty of room for tools, soldering irons, or assembly fixtures.
-
Versatile Illumination Options: The system comes standard with adjustable reflected (top) and transmitted (bottom) LED illumination. For specialized applications like inspecting deep holes, an optional Coaxial Illumination module (ISM-ZS200-COAXIAL) can be integrated directly into the parallel light path.
-
Ergonomic & Complete Kit: Includes WF10X eyepieces with ±5 diopter adjustment, dual stage plates (glass and white/black) for optimal contrast, and an anti-dust cover. Optional iris diaphragms and higher-magnification eyepieces are also available.
