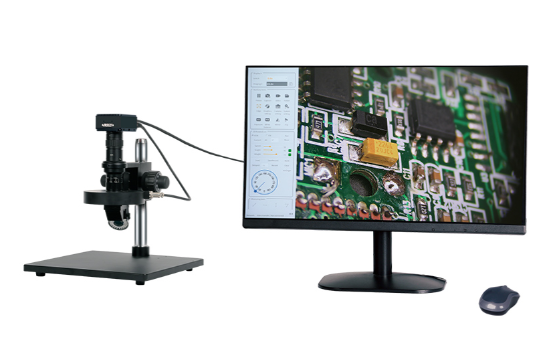

2D/Motorized Rotation 3D Microscope (With Display)
BDT 0/-
Product Details
Brand: INSIZE
Model: 5327-MD10
Country Of Origin: China
Features:
4K high-definition 3D image
Supports switching from 3D monitoring to 2D
Take pictures and videos, save to USB flash disk
Built-in software without computer, operated by mouse
Measurement results can be sent to Excel
Automatic white balance and exposure
Brightness, contrast ratio, gain are adjustable
2D measurement can be achieved by connecting to computer software via an RJ45 port
| Sensor: | 1/1.8" CMOS, 8M Pixel |
| Resolution: | 3840×2160 (60fps) |
| Magnification: | 46X~375X |
| View Field: | 12.9×7.2~1.5×0.8mm |
| Focus Distance: | 30mm (2D & 3D) |
| Dimensions: | 330×300×318mm |
| Net Weight: | 7.8kg |
The INSIZE 5327-MD10 2D/Motorized Rotation 3D Microscope is a top-tier, standalone optical inspection system designed for advanced quality control and failure analysis. Upgrading from manual models, this system features software-controlled motorized 360° rotation, allowing users to automate the inspection of complex parts from multiple angles (0°, 90°, 180°, 270°) without touching the sample.
Equipped with a high-resolution 8M pixel CMOS sensor and a brilliant 27-inch LCD, it delivers stunning 4K high-definition 3D images. The system easily switches between 3D observation and 2D measurement modes. Operating completely standalone via the included mouse and built-in software, it can also connect to a PC via RJ45 for advanced data management. The step-zoom lens (0.6X~5X) and independent multi-zone LED lighting ensure optimal clarity for parts like threaded screws and PCBs. Users can capture images/videos to a USB drive and export measurement data directly to Excel.
INSIZE 5327-MD10 Motorized 3D Microscope – 4K Precision with Automated Rotation
Elevate your microscopic inspections with the INSIZE 5327-MD10 2D/Motorized Rotation 3D Microscope. Designed for modern quality control labs, electronics manufacturing, and precision engineering, this advanced system features automated 360° rotation, allowing you to thoroughly inspect complex geometries, sidewalls, and threads with the click of a mouse.
Key Features & Benefits:
-
Software-Controlled Rotation: The motorized 360° rotating stage allows operators to view a workpiece from any angle (0°, 90°, 180°, 270°) without manual handling. This is ideal for inspecting the full profile of threaded parts, connectors, and intricate machined components.
-
4K High-Definition Clarity: Equipped with an 8-megapixel 1/1.8" CMOS sensor, the system outputs stunning 4K resolution (3840x2160) images onto the included 27-inch LCD monitor.
-
Switchable 2D/3D Measurement: Seamlessly toggle between 3D observation for surface topography and 2D measurement for flat-plane dimensions. The built-in software allows for precise measurements directly on the screen.
-
True Standalone System: Operate the entire microscope using just the included mouse and the 27" LCD. The built-in software is intuitive, featuring assist tools, customizable rotation angle control, and measuring tools.
-
Seamless Data Export: Capture high-resolution images and videos and save them directly to the included 16G USB flash disk. Measurement results can be instantly exported to Excel via the RJ45 connection.
-
Complete Turnkey Setup: Includes the main unit, 27" LCD, 1.0X camera adapter, 1X auxiliary objective, calibration plate, white/black plate, mouse, and power adapter.
