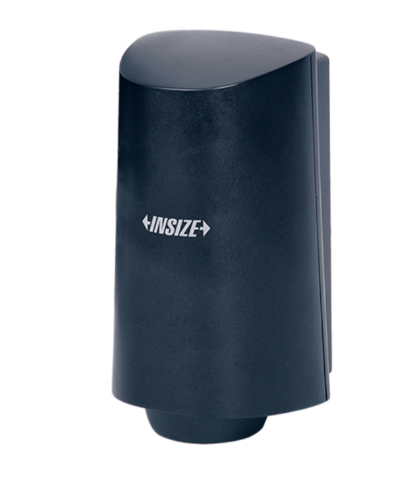

3D Large Depth Of Field Camera
BDT 0/-
Product Details
Brand: INSIZE
Model: ISM-DF80
Country Of Origin: China
Features:
Standalone 3D Measurement: Operates without a PC using the included keyboard and mouse.
Depth of Field Synthesis: Combines multiple focal planes into a single sharp 3D image.
Height Mapping: Generates chromatogram images for precise height and depth measurement.
High-Definition Output: 1080P resolution at 60fps via HDMI or LAN.
C-Mount Versatility: Compatible with standard C-mount microscope lenses.
Complete Turnkey Kit: Includes calibration tools, cables, and input devices.
| Sensor: | 1/2" CMOS, 2M Pixel |
| Resolution: | 1920Ã1080 (60fps) |
| Output: | HDMI / LAN |
| Lens Connection: | C-mount |
| Dimensions: | 87Ã181Ã103mm |
| Weight: | 2500g |
The 3D Composite Image Measurement Camera System is an advanced, standalone optical inspection solution designed to capture and measure the three-dimensional topography of complex components. Featuring a high-definition 2M pixel 1/2" CMOS sensor with C-mount lens compatibility, it outputs crystal-clear 1080P video directly to an HDMI display or over a LAN network.
What sets this system apart is its powerful built-in software, which utilizes depth of field synthesis to capture multiple focal planes and combine them into a single, fully focused 3D composite image. It generates detailed chromatogram height images (color-coded 3D height maps) allowing users to precisely measure critical dimensions such as bore heights, metal part height differences, and variations across PCB boards. Controlled via an included mouse and keyboard, the system operates entirely without a computer. It comes complete with a calibration block and glass ruler for immediate, out-of-the-box measurement accuracy.
3D Composite Image Measurement Camera System – Advanced Depth of Field & Height Analysis
Experience next-level optical metrology with the 3D Composite Image Measurement Camera System. Designed for quality control labs, electronics manufacturing, and precision engineering, this innovative C-mount camera system goes beyond standard 2D imaging to provide comprehensive 3D surface analysis and height measurement without the need for a computer.
Key Features & Benefits:
-
Powerful 3D Software Integration: The system's built-in software utilizes focus stacking (depth of field synthesis) to capture sharp images across varying depths. It then compiles this data into detailed 3D composite images and color-coded chromatogram height maps.
-
Precision Measurement Applications: Accurately measure component bore heights, analyze the height differences between metal parts, and verify board-level height variations. It is an indispensable tool for inspecting PCBs, machined components, and intricate assemblies.
-
High-Definition Imaging: Equipped with a 1/2" CMOS sensor (2M pixel) and 3.75x3.75µm pixel size, it delivers crisp 1920x1080 resolution at a smooth 60fps, ensuring every detail is captured clearly.
-
Flexible Connectivity: Features both HDMI and LAN outputs, allowing you to connect directly to a monitor for standalone operation or stream data across a network. The standard C-mount lens connection makes it compatible with a vast array of optical lenses.
-
Precise Exposure Control: Offers both auto-exposure (0.1~16.6ms) and manual exposure (0.0001~1s) modes, giving operators complete control over image brightness and clarity.
-
Complete Turnkey Package: Comes fully equipped with the camera, power adapter, HDMI 2.0 cable, a 16G USB flash disk, mouse, keyboard, and essential calibration tools (glass ruler and calibration block).
