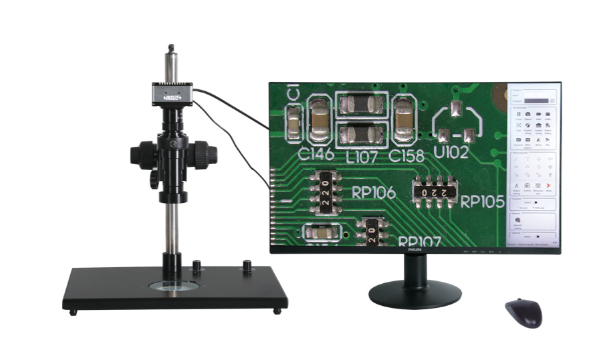

4K Digital Measuring Microscope
BDT 0/-
Product Details
Brand: INSIZE
Model: 5310-DL401
Country Of Origin: China
Features:
4K high-definition image
Built-in software without computer, operated by mouse
Take pictures, save to USB flash disk
Measurement results can be sent to Excel
Automatic white balance and exposure
Brightness, contrast ratio, gain are adjustable
| Sensor: | 1/2.3" CMOS, 8M Pixel |
| Resolution: | 3840Ã2160 |
| Magnification: | 32X~210X (on 27" LCD) |
| Output: | HDMI |
| Dimensions: | 570Ã300Ã430mm |
| Net Weight: | 6.5kg |
The INSIZE 5310-DL401 4K Digital Measuring Microscope is a state-of-the-art, standalone optical inspection system designed for ultra-high-definition imaging and precise dimensional analysis. Featuring an 8-megapixel 1/2.3" CMOS sensor, it outputs stunning 4K resolution (3840x2160) images to the included 27-inch 4K LCD monitor.
A key advantage of the DL401 is its built-in measurement software, which allows operators to perform complex measurements, calibrate, and analyze parts directly on the screen using the included mouse—completely eliminating the need for a separate computer. The system features a step-zoom lens (0.75X~5X) with a fine focus knob (2µm graduation) and includes both top LED ring lighting and bottom contour illumination. Users can easily capture 4K images or videos and save them to a USB flash disk, while measurement results can be instantly exported to Excel. Optional X-Y metal or glass stages are available for precise mechanical positioning, making this an incredibly versatile tool for electronics, machining, and materials inspection.
INSIZE 5310-DL401 4K Digital Measuring Microscope – Standalone Ultra-HD Inspection
Achieve the ultimate in visual clarity and measurement precision with the INSIZE 5310-DL401 4K Digital Measuring Microscope. Designed for modern quality control labs, electronics manufacturing, and precision engineering, this advanced standalone system combines an 8-megapixel sensor with a brilliant 27-inch 4K display to deliver an unparalleled inspection experience.
Key Features & Benefits:
-
Ultra-HD 4K Imaging: The 1/2.3" CMOS sensor captures incredibly detailed 3840x2160 resolution images. The 4K apochromatic lens ensures edge-to-edge sharpness and true color reproduction with zero chromatic aberration.
-
Computer-Free Operation: The DL401 features built-in measurement software. Perform complex measurements, calibrate, and analyze parts directly on the included 27" 4K LCD monitor using the provided mouse. No external computer is needed.
-
Comprehensive Illumination: Equipped with an adjustable top LED ring light and bottom contour illumination with brightness adjustment. This dual-lighting system is perfect for inspecting both opaque surface features and transparent workpieces or through-holes.
-
Precision Optics & Focus: Features a 0.75X~5X step-zoom lens, a 0.5X camera adapter, and a 1X auxiliary objective. The 2µm fine focus knob allows for exacting focal adjustments, ensuring measurement accuracy as high as ±3µm.
-
Effortless Data Management: Capture 4K photos or record videos and save them directly to the included 16G USB flash disk. Measurement results can be seamlessly exported to Excel.
-
Complete Turnkey Kit: Includes the main unit, 27" 4K LCD, 0.5X adapter, 1X objective, calibration plate, white/black plate, mouse, HDMI cable, and power adapters.
