Auto Focus Digital Microscopes (Large View Field)
BDT 332,182/-
Product Details
Brand: INSIZE
Model: 5302-AF105
Country Of Origin: China
Features:
Auto focus camera
Take pictures and videos
Can be connected to TV (HDMI port) and computer (RJ45 port) at the same time
Built-in measuring software for TV
Measuring software for computers is included
Automatic exposure and white balance
Brightness, contrast ratio, gain are adjustable
Display cross hair
| Sensor: | 1/2.8" CMOS, 2M Pixel |
| Resolution: | 1920Ã1080 |
| Magnification: | 1.6X~22.2X (on 27" TV) |
| Auto Focus Distance: | 100mm~â |
| Output: | HDMI, RJ45 |
| Dimensions: | 500Ã280Ã410mm |
| Net Weight: | 17kg |

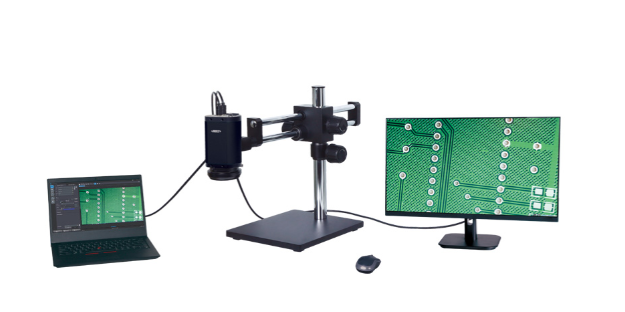

The INSIZE 5302-AF105 Auto Focus Digital Microscope is a highly versatile, large-view-field optical inspection system designed for modern quality control and manufacturing environments. Its standout feature is the ability to connect simultaneously to a TV (via HDMI) and a computer (via RJ45), allowing for real-time on-screen measurements with the built-in TV software while capturing and analyzing data on a PC using the included computer software.
Equipped with a 2M pixel, 1/2.8" CMOS sensor, it delivers crisp 1080p resolution at a smooth 60fps (HDMI). The auto-focus camera and fully adjustable stand—featuring 360° rotation, front/back, and up/down adjustments—make it incredibly easy to position over workpieces. The system includes a wide array of measurement tools, automatic exposure, white balance, and adjustable LED illumination. With a versatile view field ranging from 26x14mm up to 350x216mm, it is perfect for inspecting PCBs, machined parts, and complex assemblies without constantly repositioning the sample.
INSIZE 5302-AF105 Auto Focus Digital Microscope – Dual Connectivity & Large View Field
Streamline your visual inspections with the INSIZE 5302-AF105 Auto Focus Digital Microscope. Designed for versatility and ease of use, this advanced system features a large view field and the unique ability to connect to both a TV monitor and a computer simultaneously, offering the ultimate flexibility for quality control labs and production lines.
Key Features & Benefits:
-
Simultaneous TV and PC Connectivity: Output live 1080p video via HDMI to a TV for standalone measurement, while concurrently sending data via RJ45 to a PC for advanced image processing and record-keeping.
-
Effortless Auto Focus: The auto-focus camera ensures your subjects are always in sharp focus. Combined with an adjustable stand that features 360° rotation and multi-axis movement, positioning the lens over any part is quick and easy.
-
Large View Field: With adjustable magnification and focus distance, you can achieve a view field of up to 350x216mm, making it ideal for inspecting large printed circuit boards or complex mechanical assemblies.
-
Comprehensive Measurement Software: The system includes built-in measurement software for TV use (featuring crosshairs, calibration, and measuring tools) and professional software for PC.
-
Superior Image Control: Features automatic exposure, white balance, and adjustable brightness, contrast, and gain to ensure optimal image clarity on any surface.
-
Turnkey Package: Standard delivery includes the main unit with stand, LED illumination, HDMI and network cables, a mouse, a 16G USB flash disk, and PC software.
