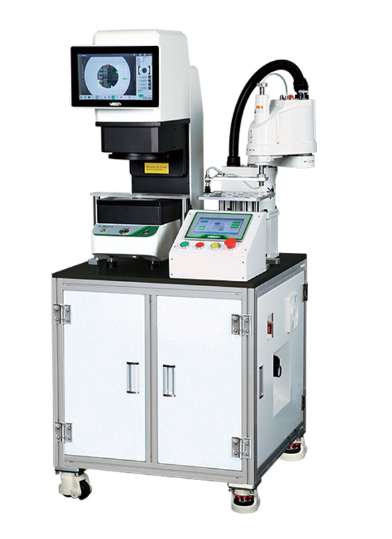

Automatic Quick Measurement System
BDT 0/-
Product Details
Brand: INSIZE
Model: RBT-QM02
Country Of Origin: China
Features:
Lightweight SCARA robot for high-speed and precision
Quick measurement system automatically measures the dimensions of the workpiece and provides real-time feedback to the control system
Control system Modbus Tcp via bus communication, high speed, high efficiency and easy to extend
| Robot Type: | 4-axis SCARA |
| Max Robot Speed: | 7225mm/s |
| Measurement Accuracy: | ±3µm |
| Measurement Time: | <2 seconds |
| Communication Protocol: | Ethernet Modbus Tcp |
| Power Supply: | 220V, 50Hz, 3000W |
| Net Weight: | 150kg |
The INSIZE RBT-QM02 Automatic Quick Measurement System is a highly compact, fully integrated robotic inspection and sorting cell designed to automate 2D dimensional measurements. By pairing a lightweight, high-speed 4-axis SCARA robot with the proven QMS-A110 vision measurement system, it provides an efficient, turnkey solution for high-volume manufacturing environments.
The system operates seamlessly: an operator simply places the part into a customized recess in the loading area. The SCARA robot (capable of blistering speeds up to 7225mm/s) picks up the workpiece, places it into the QMS-A110's measurement field, and a precise 2D measurement is completed in under 2 seconds. The robot then automatically sorts the part into OK or NG stations based on the results. Controlled via Ethernet Modbus TCP, the RBT-QM02 provides real-time feedback to the broader production line and comes fully equipped with customized fixtures, a control touch screen, and advanced software that automatically counts and stores inspection data.
INSIZE RBT-QM02 Automatic Quick Measurement System – High-Speed SCARA Robotic Inspection
Maximize your production throughput and eliminate human error with the INSIZE RBT-QM02 Automatic Quick Measurement System. This compact, fully automated robotic cell is specifically engineered for rapid 2D vision inspection and sorting of high-volume components. By combining a high-speed 4-axis SCARA robot with the precision of the QMS-A110 measurement system, it delivers a seamless, hands-free quality control workflow.
Key Features & Benefits:
-
Lightning-Fast SCARA Robot: Equipped with a lightweight, high-speed 4-axis SCARA robot capable of reaching speeds up to 7225mm/s with a repeat positioning accuracy of ±0.02mm, ensuring incredibly fast cycle times.
-
High-Precision Vision System: The integrated QMS-A110 features a 100×80mm view field and delivers a measurement accuracy of ±3µm with 1µm repeatability, completing inspections in under 2 seconds.
-
Fully Automated Sorting: Operators simply load the part into the custom recess. The robot handles the transfer, measurement, and final sorting into OK or NG bins based on the software's immediate pass/fail determination.
-
Seamless System Communication: Utilizing Ethernet Modbus TCP, the system offers high-speed, high-efficiency data transfer between the robot, measurement unit, and control system, making it easy to integrate into larger automated production lines.
-
Intelligent Software Suite: The included software automatically measures widths, holes, rings, and angles simultaneously. It automatically stores results and maintains a real-time count of OK and NG items for complete traceability.
-
Turnkey Customization: Delivered complete with a control touch screen, control box, customized fixtures, and software dongle, tailored to your specific workpiece geometry.
