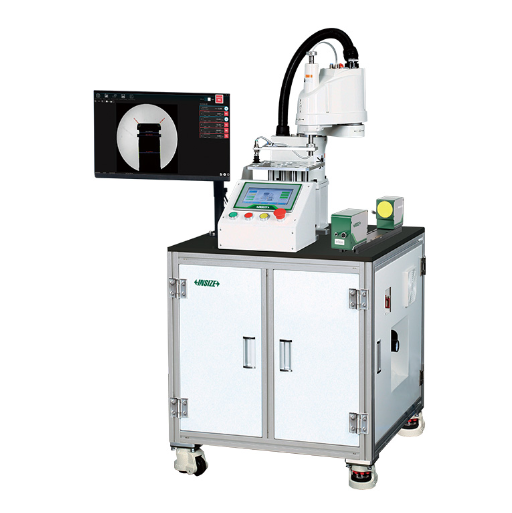

Automatic Quick Measurement System
BDT 0/-
Product Details
Brand: INSIZE
Model: RBT-VIM40
Country Of Origin: China
Features:
Lightweight SCARA robot for high-speed and precision
Quick measurement system automatically measures the dimensions of the workpiece and provides real-time feedback to the control system
Control system Tcp/IP via bus communication, high speed, high efficiency and easy to extend
| Robot: | 4-axis SCARA, 400mm reach, 7225mm/s speed |
| Measurement Range: | Ø40mm |
| Measurement Accuracy: | ±3µm |
| Depth of Field: | 20mm |
| Communication: | Ethernet Tcp/IP |
| Power Supply: | 220V, 50Hz |
| Net Weight: | 113kg |
The INSIZE RBT-VIM40 Automatic Quick Measurement System is a compact, fully integrated robotic inspection cell designed for high-speed, automated dimensional verification. Pairing a lightweight, high-speed 4-axis SCARA robot with the high-precision VIM-L40 dual telecentric measurement system, this turnkey solution is perfect for inline or near-line quality control of small to medium-sized workpieces.
The system operates seamlessly: an operator places a part in the customized loading recess, and the robot takes over. The robot picks up the workpiece and positions it between the VIM-L40's telecentric transmitter and receiver. The system instantly measures the part's dimensions (within a Ø40mm range with ±3µm accuracy and a large 20mm depth of field) and provides real-time OK/NG feedback. The robot then automatically sorts the part into the appropriate bin. The RBT-VIM40 features Ethernet TCP/IP communication for seamless integration into smart factories, and its standard delivery includes a monitor, industrial computer, software, and a dedicated control touch screen, providing everything needed for immediate deployment.
INSIZE RBT-VIM40 Automatic Quick Measurement System – High-Speed Robotic Optical Inspection
Maximize your production throughput with the INSIZE RBT-VIM40 Automatic Quick Measurement System, a highly compact robotic cell engineered for automated 2D dimensional inspection and sorting. By integrating a high-speed 4-axis SCARA robot with the advanced VIM-L40 dual telecentric measurement system, this cell delivers seamless, hands-free quality control for small precision parts.
Key Features & Benefits:
-
Lightning-Fast SCARA Robot: Equipped with a lightweight 4-axis SCARA robot capable of speeds up to 7225mm/s, ensuring incredibly fast part handling and minimal cycle times.
-
Dual Telecentric Measurement: The integrated VIM-L40 uses an InGaN green LED and dual telecentric optics to measure dimensions with ±3µm accuracy and 1µm repeatability, completely eliminating edge distortion.
-
Large Depth of Field: With a 20mm depth of field and a Ø40mm measurement range, the system can accurately measure stepped shafts, threads, and complex profiles without needing constant refocusing.
-
Fully Automated Workflow: From the moment the operator loads the custom fixture, the robot handles the picking, positioning, measurement, and final OK/NG sorting based on real-time software analysis.
-
Seamless Integration: Utilizing Ethernet Tcp/IP bus communication, the system is easy to extend and integrate into automated production lines, providing real-time data feedback to the central control system.
-
Complete Turnkey Package: Standard delivery includes the robotic system, the VIM-L40 measurement main unit, industrial computer, software dongle, monitor, control touch screen, and control box.
