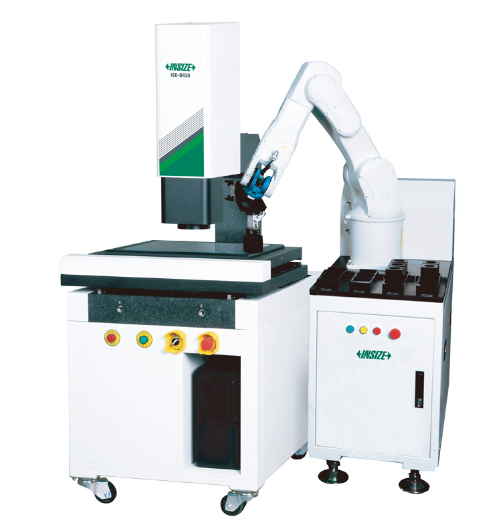

Automatic Vision Measuring System
BDT 0/-
Product Details
Brand: INSIZE
Model: RBT-ISD01
Country Of Origin: China
Features:
6-axis industrial robot for high speed and precision, IP67, triple protection
Vision measuring system automatically measures the dimensions of the workpiece and provides real-time feedback to the control system
Control system Tcp/IP via bus communication, high speed, high efficiency and easy to extend
| Robot Type: | 6-axis industrial robot, IP67 |
| Max Workpiece Weight: | 8kg |
| Vision Measurement Range: | 300Ã200Ã200mm |
| Vision Measurement Accuracy: | â¤(2.5+L/200)Âĩm |
| Communication Protocol: | Ethernet Tcp/IP |
| Power Supply: | 220V, 50Hz |
| Environmental Requirement: | 20°C¹5°C, 30%~80% RH |
The INSIZE RBT-ISD01 Automatic Vision Measuring System is a fully automated robotic inspection solution designed for high-precision dimensional measurement and quality control. It combines an IP67-rated 6-axis industrial robot with ±0.02 mm repeatability and a CNC vision measuring system featuring a 300 × 200 × 200 mm measuring range and accuracy of ≤(2.5 + L/200) µm. Using Ethernet TCP/IP communication, the system automatically measures workpieces, analyzes results, and sorts components into OK or NG categories. It is ideal for high-volume manufacturing lines requiring fast, consistent, and reliable automated inspection.
The INSIZE RBT-ISD01 Automatic Vision Measuring System is a fully automated robotic inspection cell designed for high-volume manufacturing and dimensional quality control. It combines an IP67-rated 6-axis industrial robot with a 720 mm reach, 4000 mm/s speed, ±0.02 mm repeatability, and an 8 kg payload capacity with a CNC vision measuring system. Offering a 300 × 200 × 200 mm measuring range, accuracy of ≤(2.5 + L/200) µm, and 2 µm repeatability, it enables precise non-contact inspection. Ethernet TCP/IP communication supports efficient system integration, while automatic OK/NG sorting ensures fast, consistent quality control. The complete system includes a touchscreen control panel, computer, software, customized fixtures, and an automation module.
