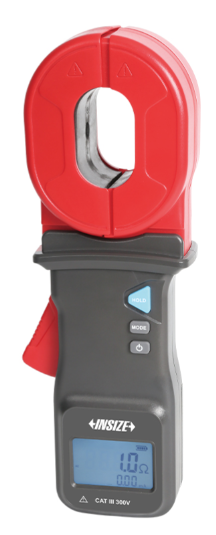

Clamp Earth Resistance Testers
BDT 43,251/-
Product Details
Brand: INSIZE
Model: 0719-200
Country Of Origin: China
Features:
Over-limit audible and visual alarm.
Data storage.
Data hold.
Low battery indicator.
Earth resistance measurement: capable of quickly and safely testing indoor/outdoor earthing loop resistance.
AC leakage current measurement: AC leakage current can be measured without disconnecting the earthing system.
| Type: | Clamp Earth Resistance Tester |
| Resistance Range: | 0.01~200Ω (0719-200), 0.01~500Ω (0719-500), 0.01~1000Ω (0719-1000) |
| Current Range: | 30A (0719-1000 only) |
| Jaw Size: | 55mm×32mm |
| Test Time: | 0.5s/t |
| Resistance Test Frequency: | >1kHz |
| Data Storage: | 99 groups |
| Operation Environment: | -10°C~55°C, 10%RH~90%RH |
| Power Supply: | 4x1.5V AA batteries |
| Dimension: | 277×100×57mm |
| Net Weight: | 880g |
The INSIZE 0719 Series Clamp Earth Resistance Testers are professional-grade instruments designed for quick, safe, and accurate measurement of earth resistance and AC leakage current without disconnecting the earthing system. Available in three models—0719-200 (0.01~200Ω), 0719-500 (0.01~500Ω), and 0719-1000 (0.01~1000Ω)—these clamp meters are ideal for electricians, engineers, and safety inspectors working with grounding systems, lightning protection, and industrial electrical installations.
The testers feature a large 55mm x 32mm jaw for easy clamping around grounding conductors, a fast test time of 0.5s, and a resistance test frequency of >1kHz. They offer data storage for up to 99 groups, data hold, over-limit audible and visual alarms, and a low battery indicator. The 0719-1000 model additionally measures AC leakage current up to 30A. All models operate in environments from -10°C to 55°C with 10%RH to 90%RH, are powered by four 1.5V AA batteries, and share the same compact dimensions (277 x 100 x 57 mm) and weight (880g). The standard delivery includes the main unit, 4 AA batteries, and a 1Ω loop resistance standard for calibration verification.
INSIZE 0719 Series Clamp Earth Resistance Testers – Non-Invasive Ground Testing
Measure earth resistance and AC leakage current safely and efficiently with the INSIZE 0719 Series Clamp Earth Resistance Testers. Available in three models (0719-200, 0719-500, 0719-1000), these professional-grade clamp meters are designed for electricians, engineers, and safety inspectors who need quick, reliable grounding system verification without disconnecting the earthing system.
Key Features & Benefits:
-
Non-Invasive Measurement: Clamp design allows quick and safe testing of indoor/outdoor earthing loop resistance without disconnecting the system.
-
Multiple Models: Choose from 0719-200 (0.01~200Ω), 0719-500 (0.01~500Ω), or 0719-1000 (0.01~1000Ω) to suit your measurement range needs.
-
AC Leakage Current Measurement: The 0719-1000 model also measures AC leakage current up to 30A without disconnecting the earthing system.
-
Fast Test Time: Delivers results in just 0.5 seconds per test.
-
Large Jaw Size: 55mm x 32mm jaw accommodates a wide range of conductors.
-
Data Storage & Hold: Stores up to 99 groups of data and includes a data hold function.
-
Over-Limit Alarm: Audible and visual alarm alerts users when measurements exceed set limits.
-
Low Battery Indicator: Alerts user when battery replacement is needed.
-
Complete Kit: Standard delivery includes the main unit, 4 AA batteries, and a 1Ω loop resistance standard for calibration verification.
-
Portable & Durable: Compact dimensions (277 x 100 x 57 mm) and lightweight design (880g) for convenient field use.
-
Wide Operating Environment: Functions from -10°C to 55°C with 10%RH to 90%RH.
