PUMP GAS DETECTOR
BDT 62,213/-
Product Details
Brand: INSIZE
Model: 0616-MG04
Country Of Origin: China
Features:
Customize more than 30 types of gases, such as NO, NH₃, Cl₂, etc.
Up to 4 gases can be customized simultaneously.
Built-in pump measurement, fast response, high accuracy.
With metal crocodile dip, sturdy and drop resistant, easy to carry.
Customizable alarm values and calibration values.
Included extended gas tube for narrow gaps, equipment interiors, etc.
Alarm mode: light emitting diode, sound, vibration, faults and undervoltage.

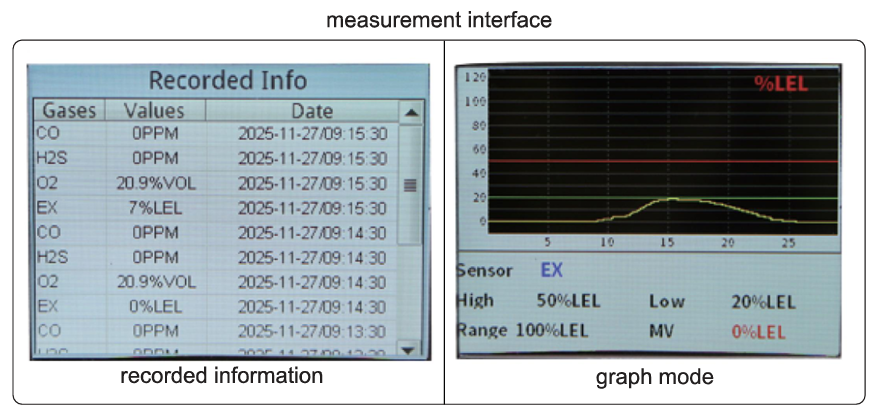

Screen brightness can be adjusted manually.
Self-test on startup.
| Gas: | Combustible gas/EX, O₂, CO, H₂S |
| Range: | 0~100%LEL, 0~30.0%VOL, 0~1000ppm, 0~100ppm |
| Resolution: | 1%LEL, 0.1%VOL, 1ppm, 1ppm |
| Accuracy: | ±5%FS, ±2%FS, ±5ppm or ±10%, ±2ppm or ±10% |
| Response Time: | ≤30s, ≤20s, ≤60s, ≤60s |
| Sensor Lifetime: | 2 years |
| Operation Environment: | -20°C~50°C, <95%RH, no condensation |
| Power Supply: | 3.7V rechargeable Li-ion battery, working time≥8h |
| Dimensions: | 175×81×63mm (includes back clip) |
| Net Weight: | 392g |
The INSIZE 0616-MG04 Pump Gas Detector is a versatile, professional-grade instrument designed for simultaneous detection of up to four gases, including combustible gas (EX), oxygen (O₂), carbon monoxide (CO), and hydrogen sulfide (H₂S). It features a built-in pump for active sampling, ensuring fast response and high accuracy, and comes with an extended gas tube for accessing narrow gaps and equipment interiors. The device is customizable for more than 30 types of gases (such as NO, NH₃, Cl₂) and can be configured to detect up to four gases simultaneously. It boasts a rugged, drop-resistant design with a metal crocodile clip for easy carrying. The 0616-MG04 offers multiple alarm modes (light, sound, vibration, faults, and undervoltage) and features manually adjustable screen brightness and a self-test on startup. It is powered by a 3.7V rechargeable Li-ion battery providing ≥8 hours of working time, measures 175 x 81 x 63 mm, and weighs 392g (including back clip).
INSIZE 0616-MG04 Pump Gas Detector – Multi-Gas Monitor with Built-in Pump
Ensure comprehensive safety with the INSIZE 0616-MG04, a professional-grade pump gas detector designed for simultaneous detection of up to four gases, including combustible gas (EX), oxygen (O₂), carbon monoxide (CO), and hydrogen sulfide (H₂S). Ideal for industrial safety, confined space entry, and environmental monitoring, this device combines advanced pump sampling with a rugged, portable design.
Key Features & Benefits:
-
Multi-Gas Detection: Simultaneously detects up to 4 gases, with customizable options for over 30 types (including NO, NH₃, Cl₂).
-
Built-in Pump Measurement: Ensures fast response and high accuracy by actively drawing samples from the environment.
-
Extended Reach: Includes an extended gas tube for accessing narrow gaps and equipment interiors.
-
Rugged & Portable: Features a sturdy, drop-resistant design with a metal crocodile clip for easy carrying.
-
Comprehensive Alarms: Alarm modes include light emitting diode, sound, vibration, faults, and undervoltage alerts.
-
User-Friendly Features: Screen brightness can be adjusted manually, and the device performs a self-test on startup.
-
Customizable Settings: Alarm values and calibration values can be customized to suit specific requirements.
-
Long Battery Life: Powered by a 3.7V rechargeable Li-ion battery providing ≥8 hours of working time.
-
Clear Status Indication: Indicator lights show green for normal, red for alarm, and yellow for fault.
