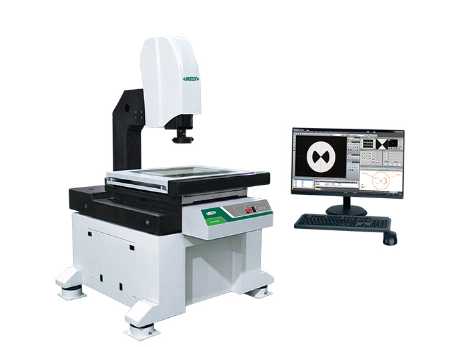

CNC Vision Measuring Systems
BDT 0/-
Product Details
Brand: INSIZE
Model: ISD-V500N
Country Of Origin: China
Features:
Automatic edge-detection, focus, measuring, contour scanning, calibration, etc.
Servo motors for X, Y, Z axis
SPC function for large quantity measurement
| Measuring Range (X×Y×Z): | 470×370×200mm |
| Accuracy: | ≤(2.5+L/200)µm |
| Resolution: | 0.5µm |
| Max. Workpiece Weight: | 30kg |
| Magnification: | 33.0X~208.6X |
| Dimensions: | 1270×1200×1870mm |
| Weight: | 870kg |
The INSIZE ISD-V500N CNC Vision Measuring System is a heavy-duty, fully automated optical metrology instrument engineered for high-volume, high-precision dimensional inspection of medium-to-large workpieces. Featuring a massive 470×370×200mm measuring range and a 30kg load capacity, it is built on a robust 870kg frame to ensure maximum stability and vibration resistance during rapid CNC movements.
Equipped with Servo motors on all three axes, the system delivers fully automated edge-detection, focusing, contour scanning, and calibration. It boasts a high-resolution giga-bit network camera and a motorized 0.7X~4.5X zoom objective, complemented by sophisticated lighting: a coaxial light and a programmable segmented ring light for surface inspection, plus adjustable LED contour lighting. Driven by advanced software featuring Statistical Process Control (SPC) functionality, the ISD-V500N is the ultimate turnkey solution for rigorous, large-scale quality assurance. Optional Renishaw-style touch probes are available to add 3D measurement capabilities.
INSIZE ISD-V500N CNC Vision Measuring System – Heavy-Duty Automated Optical Inspection
Achieve exceptional speed and accuracy in your quality control processes with the INSIZE ISD-V500N CNC Vision Measuring System. Designed for demanding manufacturing environments, this fully automated, servo-driven video measuring machine is engineered to inspect large, heavy components with sub-micron precision, eliminating operator error and drastically reducing inspection cycle times.
Key Features & Benefits:
-
Massive Measuring Volume: With a 470×370×200mm travel range and a stage capable of supporting up to 30kg, the ISD-V500N easily accommodates large machined parts, multi-cavity molds, and large electronic assemblies.
-
Fully Automated CNC Control: Panasonic servo motors drive the X, Y, and Z axes, enabling automatic edge detection, auto-focus, and programmed contour scanning for high-throughput, repeatable measurements.
-
High-Resolution Optical System: Equipped with a giga-bit network camera and a 0.7X~4.5X motorized zoom lens, delivering bright, detailed images up to 208.6X magnification.
-
Advanced Multi-Zone Illumination: Features a programmable segmented ring light and coaxial surface lighting, alongside adjustable LED contour lighting. This allows for perfect contrast on complex geometries and highly reflective surfaces.
-
SPC-Ready Software: The included software provides comprehensive geometric measurement tools and Statistical Process Control (SPC) functions, perfect for monitoring large production runs and analyzing trends.
-
Expandable to 3D: Add the optional touch probe (ISD-V-PROBE) to seamlessly switch from 2D optical measurement to 3D contact measurement within the same software.
