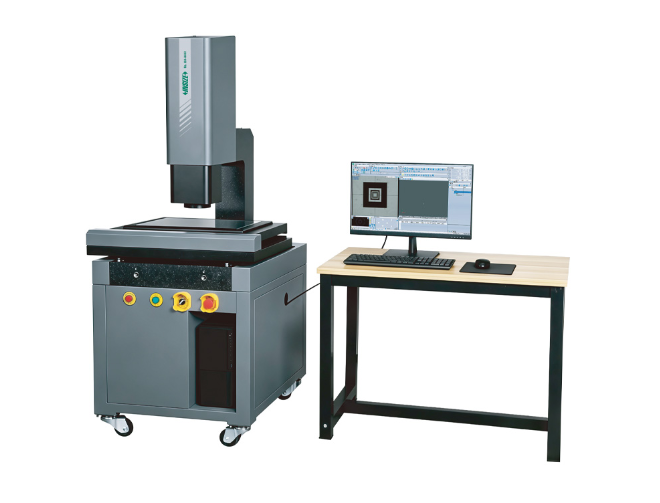

CNC Vision Measuring Systems (Advanced Type)
BDT 0/-
Product Details
Brand: INSIZE
Model: ISD-K322
Country Of Origin: China
Features:
Motorized zoom objective
Granite body, high accuracy and stability
Panasonic servo control motor, with precise positioning performance in high-speed movement
RSF brand linear scales
| Measuring Range (X×Y×Z): | 300×200×200mm |
| Accuracy: | ≤(1.8+L/200)µ |
| Repeatability: | 2µm |
| Max. Workpiece Weight: | 35kg |
| Drive Method: | Automatic (Panasonic Servo) |
| Dimensions: | 620×780×1750mm |
| Net Weight: | 350kg |
STANDARD DELIVERY Table:
-
Main unit: 1 pc
-
Dongle: 1 pc
-
Software: 1 pc
-
Lens with coaxial light: 1 pc
-
Controller: 1 pc
-
Computer: 1 pc
-
Calibration glass chart: 1 pc
-
Desk: 1 pc
-
Clay: 1 pc
-
Anti-dust cover: 1 pc
OPTIONAL ACCESSORY Table:
-
0.5X auxiliary objective (ISD-K-OB05X), 2X auxiliary objective (ISD-K-OB2X)
-
Spectral confocal sensor (ISD-K-SCS), Laser probe (ISD-K-LASER), Line laser sensor (ISD-K-LINE)
-
Probe (ISD-K-PROBE, includes Ø1mm and Ø2mm styli, Ø20mm calibration ball)
-
Software options: Line profile (ISD-K-LP), Gear (ISD-K-GEAR), Thread (ISD-K-THREAD), Stitching (ISD-K-STITCHING), Office (7313-OFFICE)
-
