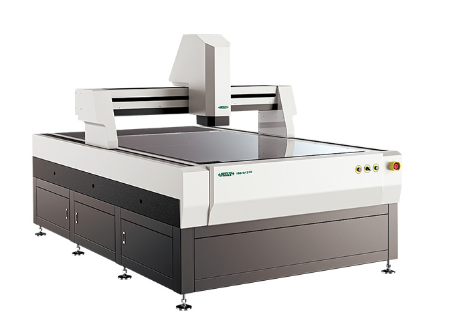

CNC Vision Measuring Systems (Advanced Type)
BDT 0/-
Product Details
Brand: INSIZE
Model: ISD-Q542
Country Of Origin: China
Features:
Motorized zoom objective
Granite body, high accuracy and stability
Panasonic servo control motor, with precise positioning performance in high-speed movement
RSF brand linear scales
| Measuring Range (X×Y×Z): | 400×500×200mm |
| Accuracy: | ≤(2.5+L/200)µm |
| Repeatability: | 2µm |
| Max. Workpiece Weight: | 35kg |
| Drive Method: | Automatic (Panasonic Servo) |
| Dimensions: | 1400×1010×1780mm |
| Net Weight: | 825kg |
The INSIZE ISD-Q542 CNC Vision Measuring System is a top-tier, fully automated optical metrology instrument engineered for the most demanding dimensional inspection tasks. As an "Advanced Type" model, it is built upon a massive granite body, providing exceptional vibration damping and thermal stability to ensure sub-micron accuracy even during high-speed movements.
Equipped with Panasonic servo control motors and high-precision RSF brand linear scales, the machine delivers flawless automated positioning across its generous 400×500×200mm measuring range, supporting workpieces up to 35kg. The optical system is highly advanced, featuring a high-resolution auto-zoom lens (0.6X~8.0X continuous zoom), a 5M pixel color CCD camera, and a dedicated navigation camera for effortless setup. Illumination is managed by a sophisticated three-ring, eight-zone adjustable ring light and coaxial light. The system comes complete with a computer, controller, software, and a dedicated desk, offering a turnkey solution that includes advanced features like CAD import programming, template-assisted positioning, and multi-point autofocus.
INSIZE ISD-Q542 CNC Vision Measuring System – Advanced Granite-Body Metrology
Achieve ultimate precision and stability in your automated inspections with the INSIZE ISD-Q542 CNC Vision Measuring System. As an "Advanced Type" model, it is specifically engineered for high-end manufacturing and rigorous quality control laboratories that demand flawless accuracy on complex, large-scale components. By combining a massive granite structure with premium motion components and advanced optics, the ISD-Q542 sets a new standard for CNC video measuring.
Key Features & Benefits:
-
Unmatched Stability: The entire system is built on a heavy-duty granite body. This provides exceptional vibration damping and thermal stability, ensuring the ≤(2.5+L/200)µm accuracy remains consistent over long production runs.
-
High-Speed Precision Movement: Equipped with Panasonic servo control motors and RSF brand linear scales, the machine delivers rapid, automated X, Y, and Z movements without sacrificing positioning precision (0.5µm resolution).
-
Advanced Auto-Zoom Optics: Features a motorized 0.6X~8.0X continuous zoom lens, a high-resolution 5M pixel color CCD camera, and a dedicated navigation camera for quick and easy workpiece locating.
-
Programmable Multi-Zone Lighting: The three-ring, eight-zone adjustable ring light, combined with coaxial illumination, allows operators to perfectly illuminate highly reflective surfaces, deep bores, and intricate edges.
-
Massive Capacity: Handles workpieces up to 35kg across a generous 400×500×200mm measuring volume.
-
Elite Turnkey Package: Standard delivery includes the main unit, a powerful computer, software, controller, calibration glass chart, and even a dedicated operator desk.
-
Expandable to 3D and Beyond: Easily upgrade with optional Renishaw touch probes (ISD-K-PROBE), laser sensors, or spectral confocal sensors. Specialized software modules for gears, threads, and line profiles are also available.
