CNC Vision Measuring Systems (Standard Type)
BDT 0/-
Product Details
Brand: INSIZE
Model: ISD-V220ZA
Country Of Origin: China
Features:
Automatic edge-detection, focus, measuring, contour scanning, calibration, etc.
Servo motors for X, Y, Z axis
SPC function for large quantity measurement
| Type: | CNC Vision Measuring System Standard Type |
| Measuring Range (X×Y×Z): | 220×120×150mm |
| Accuracy: | ≤(2.5+L/100)µm |
| Resolution: | 0.5µm |
| Max. Workpiece Weight: | 30kg |
| Magnification: | 31.9X~188.7X (Motorized Zoom) |
| Dimensions: | 760×600×900mm |
| Weight: | 146kg |

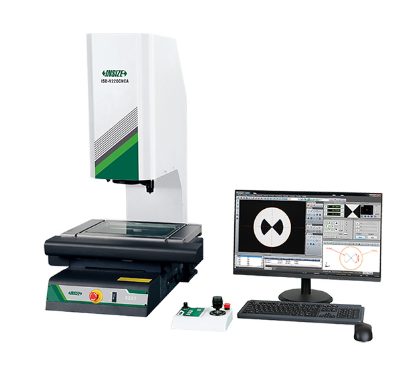

The INSIZE ISD-V220ZA CNC Vision Measuring System is a fully automated, high-precision optical metrology instrument designed for rapid and reliable dimensional inspection. As a "Standard Type" model with a motorized zoom lens, it delivers exceptional performance for a wide range of quality control applications.
Equipped with a giga-bit network camera and a programmable segmented ring light alongside built-in coaxial illumination, the ISD-V220ZA ensures superior edge detection and surface feature visibility. It features automatic edge-detection, focus, measuring, and contour scanning, driven by precise servo motors on the X, Y, and Z axes. With a measuring range of 220×120×150mm and a maximum load capacity of 30kg, it accommodates a variety of workpieces. The system comes as a complete turnkey package, including a computer, 24" display, controller, and advanced software with SPC functionality for large quantity measurements, making it ideal for modern manufacturing environments.
INSIZE ISD-V220ZA CNC Vision Measuring System – Standard Automated Optical Metrology
Achieve fast, accurate, and repeatable non-contact measurements with the INSIZE ISD-V220ZA CNC Vision Measuring System. Designed for quality control labs and manufacturing floors, this standard-type automated optical comparator combines a high-resolution giga-bit network camera with a motorized zoom lens and advanced servo motor controls to deliver exceptional precision for a wide variety of parts.
Key Features & Benefits:
-
Automated Efficiency: With automatic edge-detection, focus, and contour scanning, the ISD-V220ZA drastically reduces inspection times and eliminates operator variability.
-
Advanced Optical System: Features a motorized zoom objective (0.7X~4.5X) and built-in coaxial lighting, complemented by a programmable segmented ring light, ensuring perfect illumination and sharp imaging for complex geometries.
-
High-Precision Mechanics: Driven by servo motors on the X, Y, and Z axes, the system provides a resolution of 0.5µm and an accuracy of ≤(2.5+L/100)µm over a 220×120×150mm measuring range.
-
Giga-Bit Camera: The high-speed network camera captures detailed images instantly, working seamlessly with the measurement software for real-time results.
-
SPC Functionality: Built-in Statistical Process Control tools make it incredibly easy to measure large quantities and analyze trends over time.
-
Turnkey Package: Comes fully equipped with a PC, 24" display, controller, software, calibration glass chart, and laser positioner for immediate deployment.
