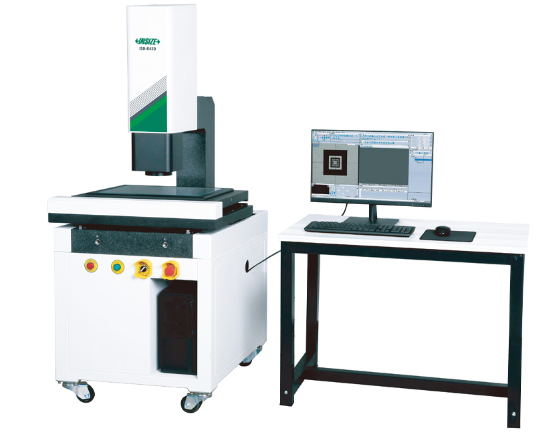

CNC Vision Measuring Systems (Standard Type)
BDT 0/-
Product Details
Brand: INSIZE
Model: ISD-R320
Country Of Origin: China
Features:
Motorized zoom objective
Granite body, high accuracy and stability
Servo motors for X, Y, Z axis
| Measuring Range (X×Y×Z): | 300×200×200mm |
| Accuracy: | ≤(2.5+L/200)µm |
| Repeatability: | 2µm |
| Max. Workpiece Weight: | 35kg |
| Drive Method: | Automatic |
| Dimensions: | 620×780×1750mm |
| Net Weight: | 350kg |
The INSIZE ISD-R320 CNC Vision Measuring System is an advanced, fully automated optical metrology instrument designed for high-precision dimensional inspection. As a "Standard Type" model, it features a heavy-duty granite body that provides exceptional thermal stability and vibration damping, ensuring consistent accuracy during high-speed automated movements. It is equipped with Panasonic servo motors on all X, Y, and Z axes and a dedicated navigation camera for quick and intuitive workpiece positioning.
The system boasts a high-resolution 2.3M pixel color CCD camera and a motorized 0.7X~5.0X zoom objective, delivering clear images up to 165X magnification on a 23.8" monitor. Advanced illumination includes a programmable segmented ring light and coaxial surface light, alongside adjustable LED contour lighting for optimal edge detection. The ISD-R320 offers a 300×200×200mm measuring range with a 35kg load capacity. The included software features powerful functionalities like CAD import programming, template-assisted positioning, and multi-point autofocus. The system comes as a complete turnkey package, including a computer, controller, software, and even a dedicated desk for the operator.
INSIZE ISD-R320 CNC Vision Measuring System – Automated Granite-Body Metrology
Achieve reliable, high-speed precision with the INSIZE ISD-R320 CNC Vision Measuring System. Designed for modern quality control labs and manufacturing floors, this fully automated optical measuring machine combines a rigid granite structure with advanced servo-driven mechanics to deliver repeatable, sub-micron accuracy on complex components.
Key Features & Benefits:
-
Heavy-Duty Granite Base: The granite body and stage provide exceptional thermal stability and vibration damping, ensuring that the 0.5µm resolution and ≤(2.5+L/200)µm accuracy remain rock-solid.
-
Fully Automated Control: Panasonic servo motors drive the X, Y, and Z axes for smooth, high-speed automated positioning. A dedicated navigation camera makes finding and aligning parts effortless.
-
High-Resolution Optics: Features a 2.3M pixel color CCD camera and a motorized 0.7X~5.0X zoom lens, delivering bright, detailed images up to 165X magnification.
-
Intelligent Software Suite: The included software is packed with time-saving features. Use the CAD import programming for fast setup, template-assisted positioning for automatic batch measurements, and multi-point autofocus for rapid flatness and height analysis.
-
Superior Illumination: A programmable segmented ring light and coaxial light handle surface features, while adjustable LED contour lighting ensures excellent edge contrast.
-
Expandable Capabilities: Upgrade the system with advanced sensors like a spectral confocal sensor, laser probe, or line laser sensor. Specialized software modules for gears, threads, and stitching are also available.
-
Elite Turnkey Package: Delivered complete with a computer, software, controller, calibration glass chart, and even an operator desk.
