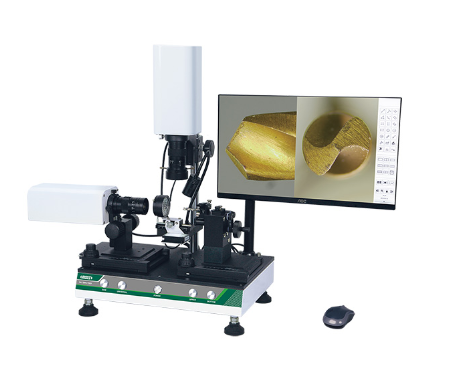

Cutting Tools Microscope
BDT 0/-
Product Details
Brand: INSIZE
Model: ISM-CT820
Country Of Origin: China
Features:
Split screen design, zoom in and out independently
One mouse can operate two cameras
Display cross hairs
Brightness, contrast ratio, while balance are adjustable (Note: "while" is transcribed exactly as seen in the image)
Basic measuring tools including point to point, point to line, line to line, angle, three-point circle, etc.
| Cutting Tools Range: | Ã4~12mm, length 30~75mm |
| Magnification: | 20~132X (Step-zoom lens) |
| Resolution: | 1920Ã1080, 60fps |
| Output: | HDMI |
| Dimensions: | 450Ã300Ã700mm |
| Net Weight: | 25kg |
The INSIZE ISM-CT820 Cutting Tools Microscope is an advanced, all-in-one digital inspection system designed for the precise measurement and visual analysis of cutting tools. Featuring a unique split-screen design, it allows users to independently zoom in and out on two separate camera views simultaneously, displayed on the included 21.5" LCD monitor.
This system operates entirely standalone without the need for an external computer, thanks to its built-in measurement software. Operators can use a single mouse to control both cameras, adjust brightness, contrast, and white balance, and utilize basic measurement tools (point-to-point, angle, three-point circle, etc.) directly on screen. Designed for tools ranging from Ø4~12mm with lengths of 30~75mm, the ISM-CT820 is equipped with four adjustable illumination sources (upper, universal, bottom, and side) for optimal surface and edge visibility. The system outputs high-definition 1920x1080 resolution at 60fps via HDMI, providing crystal-clear imagery for rigorous quality control.
INSIZE ISM-CT820 Cutting Tools Microscope – Split-Screen Digital Inspection System
Achieve unparalleled clarity in your cutting tool inspections with the INSIZE ISM-CT820 Cutting Tools Microscope. Designed as a fully integrated, standalone digital measuring system, it combines dual-camera technology with a 21.5-inch split-screen LCD to provide machinists and quality control inspectors with an incredibly detailed view of their tooling.
Key Features & Benefits:
-
Innovative Split-Screen Design: Features two independent cameras displayed on a single monitor. You can zoom in and out independently on each view, allowing you to inspect the cutting edge and the tool shank simultaneously.
-
No Computer Required: The built-in software processes measurements and displays crosshairs directly on the monitor. A single mouse operates both cameras, making the system intuitive and space-saving.
-
Advanced Illumination: Equipped with four independently adjustable light sources: upper, universal, bottom, and side illumination. This ensures perfect edge contrast and surface detail on complex tool geometries.
-
Precision Measurement Tools: Includes a suite of on-screen measuring tools such as point-to-point, point-to-line, angle, and three-point circle, ensuring accurate dimensional analysis. Brightness, contrast, and white balance are fully adjustable.
-
High-Resolution Output: Delivers crisp 1920×1080 HDMI output at 60fps with a magnification range of 20X to 132X.
-
Complete Turnkey Package: Standard delivery includes the main unit, a 21.5" LCD monitor, a glass calibration plate, HDMI cable, mouse, 32G USB flash disk, and an anti-dust cover.
