Tool Presetter
BDT 0/-
Product Details
Brand: INSIZE
Model: ISP-A350
Country Of Origin: China
Features:
Check, preset and measure cutting tools
Telecentric lens CCD camera system
Use Bosch or Festo pneumatic components, THK guideways and HEIDENHAIN scales
Built-in 104 cutting edge shapes, automatic recognition
Measuring modes: absolute, relative and incremental measurement
Measuring radius, angle, concentricity, axial runout, etc.
Storage of 1000 tool parameters
View, print and export measurement results
| Maximum Tool Diameter X: | 320mm |
| Maximum Tool Height Z: | 350mm |
| Resolution: | 1Âĩm |
| Repeatability: | 2Âĩm |
| Standard Spindle: | ISO/SK/BT50 |
| Dimensions: | 1900Ã750Ã1650mm |
| Net Weight: | 170kg |
The INSIZE ISP-A350 Tool Presetter is a high-precision, European-made measurement system designed for checking, presetting, and measuring cutting tools offline. Equipped with a telecentric lens CCD camera system and a 7" DFT color display, it provides crystal-clear image processing with 1µm accuracy. Built to withstand rigorous shop-floor environments, it utilizes premium components including Bosch or Festo pneumatic systems, THK guideways, and HEIDENHAIN scales for unmatched durability and precision.
The system features an air flotation button for effortless rapid movement of the X and Z axes, alongside a high-precision ISO/SK/BT50 spindle with 360° and 4x90° clamping. It boasts automatic recognition of 104 built-in cutting edge shapes, supports absolute/relative/incremental measurement modes, and stores up to 1000 tool parameters. An integrated printer allows for immediate labeling of tools. The ISP-A350 is a complete turnkey solution for modern CNC workshops, ensuring tools are accurately set before they ever enter the machine spindle, drastically reducing downtime and scrap.

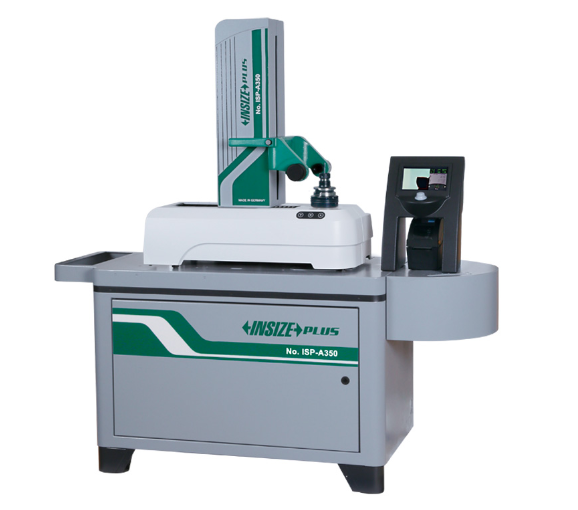

INSIZE ISP-A350 Tool Presetter
The INSIZE ISP-A350 is a high-precision offline CNC tool measurement system designed to improve machining efficiency and reduce machine downtime. It features a telecentric lens, color CCD camera, 7-inch display, 1 µm image processing accuracy, and 2 µm repeatability. With automatic recognition of 104 cutting-edge shapes, multiple measurement modes, and storage for up to 1,000 tool parameters, it ensures accurate and efficient tool presetting. Additional features include an air flotation system, BT50 spindle, built-in label printer, USB and RS232 data outputs, and optional spindle converters for various tool holder standards.
