Cutting Tools Vision Measuring System
BDT 0/-
Product Details
Brand: INSIZE
Model: TLP-D150
Country Of Origin: China
Features:
Measurement and inspection of milling cutters, drill bits, non-standard molding tools under surface light
Profile measurement, automatic profile capture for straight and helical fluted tools
Import and export CAD file
High magnification for clear observation of tool chipping and grinding wheel pattern on the back face
Granite platform, more stable
Ergonomically designed structure, easy and quick to operate
The crosshairs of the cutting edge can be automatically recognized and captured
Automatic and manual measurements
Data storage, analysis, management, photography, image storage and management
| Measuring Range (XÃY): | 150Ã60mm |
| Applicable Range: | 0~40mm |
| Accuracy: | 5Âĩm |
| Magnification: | 20X~240X |
| Drive Method: | Manual |
| Weight: | 60kg |

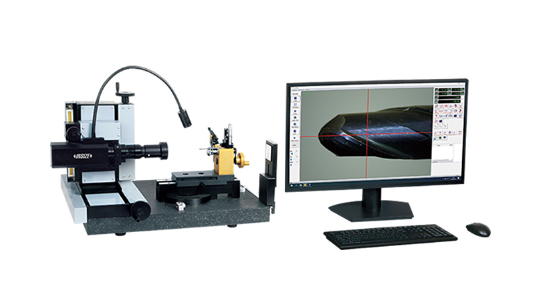

The INSIZE TLP-D150 Cutting Tools Vision Measuring System is a comprehensive, manual optical inspection system designed for the precise measurement and analysis of complex cutting tools. Built on a sturdy, vibration-dampening granite platform, it combines a high-magnification zoom objective (20X~240X) with a color CCD camera to deliver sharp, real-time images on the included computer monitor.
The system's advanced software makes it an incredibly powerful tool room asset. It features automatic profile capture for both straight and helical fluted tools, automatic crosshair recognition, and the ability to import and export CAD files for direct profile comparison. The TLP-D150 is equipped to measure a vast array of parameters across various tool types, including drill bits (helix angles, cross-edge runout), milling cutters (groove depth, spiral angle), taps, reamers, and blades. It comes standard with both a concentric clamp and a V-clamp to securely hold different tool geometries, making it an essential turnkey solution for cutting tool manufacturers and maintenance shops.
INSIZE TLP-D150 Cutting Tools Vision Measuring System – Precision Optical Tool Inspection
Ensure your cutting tools meet the highest performance standards with the INSIZE TLP-D150 Cutting Tools Vision Measuring System. This advanced, manually driven optical inspection station is designed for tool manufacturers, regrinding shops, and quality control labs, providing comprehensive measurement and analysis of complex tool geometries.
Key Features & Benefits:
-
Extensive Measurement Capabilities: Specifically tailored for complex tools. Measure drill bits, milling cutters, taps, reamers, and blades. Analyze critical parameters like helix angles, core thickness, back angles, pitch diameters, and cutting edge runout.
-
Advanced Software Suite: The included software features automatic edge crosshair recognition, automatic profile capture for straight and helical flutes, and full CAD import/export capabilities for direct profile comparison.
-
High-Resolution Optics: Equipped with a 0.58X~8X zoom objective, delivering 20X to 240X magnification. This allows for clear observation of fine details like tool chipping and grinding wheel patterns.
-
Multi-Angle Illumination: Features adjustable LED surface and contour illumination, plus a dedicated universal light, ensuring optimal edge contrast for any tool geometry.
-
Stable & Ergonomic Design: Built on a solid granite platform to minimize vibrations, ensuring a repeatability of 2µm and accuracy of 5µm. The ergonomic structure ensures quick and easy operation.
-
Complete Turnkey Setup: The standard delivery includes the main unit, a computer, software dongle, concentric clamp, V-clamp, and an anti-dust cover.
