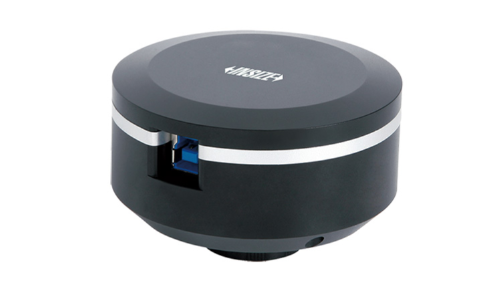

Digital Camera For Microscopes
BDT 103,924/-
Product Details
Brand: INSIZE
Model: ISM-KM60
Country Of Origin: China
Features:
To be used with computers
Sony Exmor back-illuminated CMOS sensor
USB3.0 transmission
Measuring software for computers is included
For bright field, dark field or fluorescent field
Automatic exposure, gain adjustment, white balance, chrominance adjustment, saturation adjustment, gamma correction, luminance adjustment, contrast adjustment
| Sensor: | 1/1.8" Sony Exmor CMOS |
| Resolution: | 3072Ã2048 (6M Pixel) |
| Output: | USB 3.0 |
| Lens Mount: | C-mount |
| Weight: | 275g |
The INSIZE ISM-KM60 Digital Camera for Microscopes is a high-resolution, PC-based imaging solution designed for advanced materials analysis and quality control. Featuring a premium Sony Exmor back-illuminated 6M CMOS sensor, it delivers exceptional sensitivity, low noise, and crisp 3072x2048 resolution at 30fps via high-speed USB 3.0 transmission.
Designed with a standard C-mount port, it easily integrates with a wide range of microscopes (requires an appropriate adapter, such as the optional 0.75X adapter) and is suitable for bright field, dark field, or fluorescent field applications. The included professional measuring software transforms your PC into a powerful metrology workstation. It features automatic image stitching to expand the field of view, focus stacking to capture fully sharp images of varying depths, and automatic edge detection for precise measurements. With comprehensive automatic image adjustments and a glass calibration ruler included, the ISM-KM60 is a complete turnkey solution for demanding digital microscopy.
INSIZE ISM-KM60 Digital Microscope Camera – 6M High-Speed Imaging & Measurement
Upgrade your optical inspection capabilities with the INSIZE ISM-KM60 Digital Camera. Designed for laboratory and industrial microscope applications, this advanced camera combines a high-resolution 6-megapixel Sony Exmor back-illuminated CMOS sensor with a fast USB 3.0 interface, delivering stunning, noise-free images and smooth live video directly to your computer.
Key Features & Benefits:
-
Superior Image Quality: The Sony Exmor sensor provides outstanding sensitivity and low-light performance, making it perfect for bright field, dark field, and fluorescent microscopy. It outputs crisp 3072x2048 resolution at 30fps.
-
Advanced PC Software Suite: The included professional software goes far beyond simple image capture. Utilize focus stacking to combine multiple focal planes into a single, perfectly sharp image of complex 3D objects. Use automatic image stitching to easily create large composite images by simply moving the workpiece.
-
Precision Measurement Tools: The software features automatic edge detection and a full suite of measuring tools. Combined with the included 0.1mm glass calibration ruler, it turns your microscope into a highly accurate digital measurement system.
-
Seamless Integration: Equipped with a standard C-mount connection, it adapts to most microscopes using the appropriate adapter (such as the optional ISM-AD-0D75). It also features comprehensive automatic image adjustments for exposure, white balance, gain, and contrast.
-
Ready to Deploy: The standard delivery includes the camera, a USB cable, the professional measurement software, and the calibration ruler.
