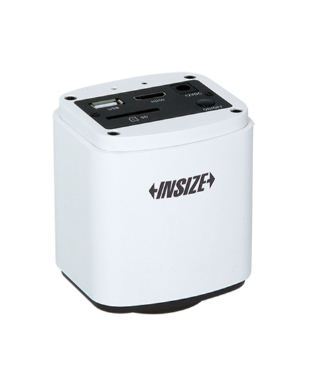

Digital Camera For Microscopes
BDT 240,506/-
Product Details
Brand: INSIZE
Model: ISM-CM20
Country Of Origin: China
Features:
1080P high-definition image
Can be connected with displays or computers
Built-in simple measuring software for displays, without computer
Professional measuring software for computers is included
For bright field, dark field or fluorescent field
Automatic exposure, white balance, gain adjustment, gamma correction, brightness contrast adjustment, saturation adjustment, chroma sharpness adjustment
Focus stacking, automatic image stitching
| Sensor: | 1/2.8" CMOS, 2M Pixel |
| Resolution: | 1920Ã1080 (30fps) |
| Output: | HDMI / USB |
| Lens Mount: | C-mount |
The INSIZE ISM-CM20 Digital Camera for Microscopes is a versatile, dual-mode imaging solution designed to meet the needs of both standalone visual inspection and advanced PC-based metrology. Featuring a 1/2.8" CMOS sensor, it delivers crisp 1080P high-definition images at 30fps via HDMI or USB output. Equipped with a standard C-mount port, it connects easily to a wide range of microscopes for bright field, dark field, or fluorescent applications (requires optional adapters like the 0.5X adapter).
The system provides maximum flexibility through its two software packages. When connected to an optional 1080P display, the built-in simple measuring software allows operators to perform basic measurements, such as distances, angles, and circle dimensions, without a computer. When connected to a PC, the included Professional Measuring Software unlocks advanced analytical capabilities, including Focus Stacking (to combine multiple focal planes into a single sharp image), Automatic Image Stitching (to create panoramic views of large workpieces), fluorescence synthesis, binary filtering, flat field correction, and comprehensive report generation. Complete with a glass calibration ruler and necessary cables, the ISM-CM20 is a powerful, adaptable tool for modern digital microscopy.
INSIZE ISM-CM20 Digital Microscope Camera – Dual-Mode Imaging & Professional Analysis
Upgrade your microscopy workstation with the INSIZE ISM-CM20 Digital Camera for Microscopes. Designed for quality control labs, electronics manufacturing, and biological research, this versatile C-mount camera provides exceptional 1080P imaging and offers two distinct software platforms to suit your workflow.
Key Features & Benefits:
-
Standalone or PC Operation: Connect the camera directly to an HDMI display (13" or larger, 1080P) to use the built-in Simple Measuring Software. This allows for basic measurements like length, distance, and angles using just a mouse, with no computer required. Alternatively, connect via USB to a PC to unlock the full power of the included Professional Measuring Software.
-
Advanced Analytical Software: The PC software is packed with professional tools. Use Focus Stacking to capture perfectly sharp images of components with significant depth, or use Automatic Image Stitching to easily pan across and combine images of larger workpieces. The software also features fluorescence synthesis, binary image smoothing, metrics flow, and dynamic/static measurement reporting.
-
High-Quality Imaging: Equipped with a 1/2.8" CMOS sensor and delivering 1920×1080 resolution at 30fps, it ensures clear, detailed visuals. It features comprehensive automatic adjustments for exposure, white balance, gain, gamma, and contrast.
-
Broad Microscope Compatibility: The standard C-mount connection allows it to be used with bright field, dark field, and fluorescent microscopes. A 0.5X adapter is available for specific optical requirements.
-
Complete Turnkey Kit: Includes the main unit, a 16G memory card, a glass calibration ruler (0.1mm), mouse, HDMI/USB cables, and power supply.
