DIGITAL DEPTH GAGE
BDT 6,728/-
Product Details
Brand: INSIZE
Model: 1145-25A
Country Of Origin: China
Features:
Non waterproof
Measure depth of small groove and hole, also measure depth of tire tread
Resolution: 0.01mm/0.0005"
Buttons: on/off, zero, mm/inch
Supplied with zero set surface
Automatic power off, move the digital unit to turn on power
Battery CR2032
Made of stainless steel
| Type: | Mini Digital Depth Gauge |
| Range: | 0-25mm / 0-1" |
| Accuracy: | ±0.03mm |
| Resolution: | 0.01mm / 0.0005" |
| Material: | Stainless steel |
| Battery: | CR2032 |
| Buttons: | on/off, zero, mm/inch |
| Data Output: | Yes (data interface) |
| Wireless Transmitter: | Optional (7315-25, receiver required) |
| Waterproof: | No |
| Included: | Zero set surface |

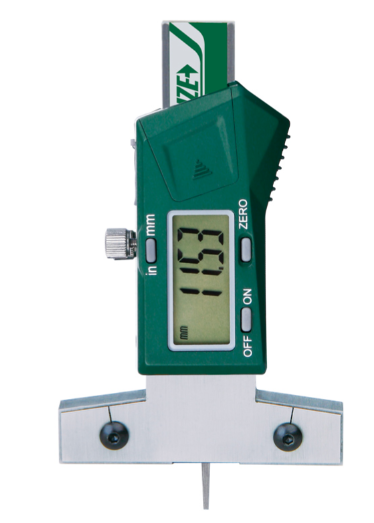

The INSIZE 1145-25A Mini Digital Depth Gauge is a compact, precision measuring instrument designed for accurately measuring the depth of small grooves, holes, and tire treads. As part of the 1145 Series, it features a measuring bar and is supplied with a zero set surface for quick and accurate calibration. Made of durable stainless steel, this depth gauge offers a measuring range of 0-25mm (0-1") with an accuracy of ±0.03mm and a resolution of 0.01mm/0.0005". It includes buttons for on/off, zero, and mm/inch conversion, along with automatic power-off (reactivated by moving the digital unit) and a CR2032 battery. The gauge includes a data interface and is compatible with an optional wireless transmitter (7315-25, receiver required). It is non-waterproof and ideal for industrial, automotive (including tire tread depth measurement), and quality control applications.
INSIZE 1145-25A Mini Digital Depth Gauge – Small Groove, Hole & Tire Tread Measurement
Measure the depth of small grooves, holes, and tire treads with precision using the INSIZE 1145-25A, a compact mini digital depth gauge designed for access to narrow and hard-to-reach features. As part of the 1145 Series, this gauge features a measuring bar and is supplied with a zero set surface for quick and accurate calibration, making it ideal for industrial, automotive, and quality control applications.
Key Features & Benefits:
-
Compact Design: Specifically designed for measuring the depth of small grooves and holes, and also for measuring tire tread depth.
-
Zero Set Surface Included: Supplied with a zero set surface for quick and accurate calibration before measurement.
-
High Resolution: Features 0.01mm/0.0005" resolution for precise measurements.
-
High Accuracy: Delivers ±0.03mm accuracy for reliable results.
-
Durable Construction: Made of stainless steel for long-lasting performance in demanding environments.
-
User-Friendly Functions: Includes on/off, zero, and mm/inch conversion buttons.
-
Automatic Power Off: Saves battery life, with power restored by moving the digital unit.
-
Data Interface: Supports data output for recording and analysis.
-
Wireless Compatibility: Compatible with optional wireless transmitter (7315-25, receiver required).
-
Reliable Power: Powered by a CR2032 battery.
-
Non-Waterproof: Designed for dry measurement environments.
-
Built-in Wireless Option: Model 1145-25AWL features built-in wireless (receiver 7315-2/3/6/7/8/9 required).
