DIGITAL INSIDE KNIFE-EDGE CALIPERS
BDT 26,441/-
Product Details
Brand: INSIZE
Model: 1123-150A
Country Of Origin: China
Features:
Non waterproof.
Measure diameter of deep step holes.
Resolution: 0.01mm/0.0005".
Buttons: on/off, zero, mm/inch.
Automatic power off, move the digital unit to turn on power.
Battery CR2032.
Made of stainless steel.
| Type: | Digital Inside Knife-Edge Caliper |
| Range: | 15-150mm / 0.6-6" |
| Accuracy: | ±0.05mm |
| Resolution: | 0.01mm / 0.0005" |
| Material: | Stainless steel |
| Battery: | CR2032 |
| Buttons: | on/off, zero, mm/inch |
| Data Output: | Yes (data interface) |
| Wireless Transmitter: | Optional (7315-25, receiver required) |
| Waterproof: | No |
| Dimensions (L/a/b/c/d/e): | 250mm / 60mm / 12mm / 16mm / 0.3mm / 3.5mm |

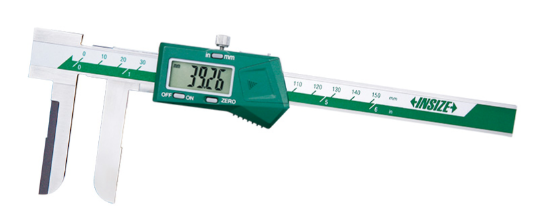

The INSIZE 1123-150A Digital Inside Knife-Edge Caliper is a specialized precision measuring instrument designed for accurately measuring the diameter of deep step holes and internal features. As part of the 1123 Series, it features knife-edge jaws that allow access to hard-to-reach internal grooves and bores. Made of durable stainless steel, this caliper offers a measuring range of 15-150mm (0.6-6") with an accuracy of ±0.05mm and a resolution of 0.01mm/0.0005". It includes buttons for on/off, zero, and mm/inch conversion, along with automatic power-off (reactivated by moving the digital unit) and a CR2032 battery. The caliper includes a data interface and is compatible with an optional wireless transmitter (7315-25, receiver required). It is non-waterproof and ideal for industrial, automotive, and quality control applications.
INSIZE 1123-150A Digital Inside Knife-Edge Caliper – Deep Step Hole Measurement
Measure deep step holes and internal diameters with precision using the INSIZE 1123-150A, a specialized digital inside knife-edge caliper designed for tasks that standard calipers cannot perform. Made of durable stainless steel, this caliper is ideal for industrial, automotive, and quality control applications requiring accurate internal measurements.
Key Features & Benefits:
-
Specialized Knife-Edge Design: Specifically designed to measure the diameter of deep step holes and internal features.
-
High Resolution: Features 0.01mm/0.0005" resolution for precise measurements.
-
Durable Construction: Made of stainless steel for long-lasting performance in demanding environments.
-
User-Friendly Functions: Includes on/off, zero, and mm/inch conversion buttons.
-
Automatic Power Off: Saves battery life, with power restored by moving the digital unit.
-
Data Interface: Supports data output for recording and analysis.
-
Wireless Compatibility: Compatible with optional wireless transmitter (7315-25, receiver required).
-
Reliable Power: Powered by a CR2032 battery.
-
Non-Waterproof: Designed for dry measurement environments.
-
Part of a Versatile Series: The 1123 Series includes models with
