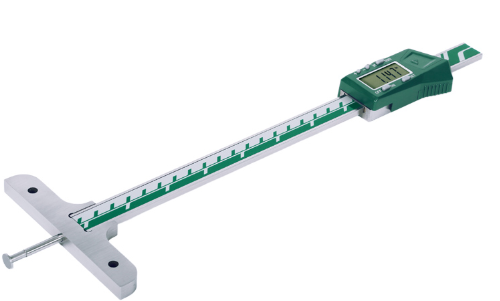

DIGITAL DEPTH GAGE WITH ROUND DEPTH BAR
BDT 36,987/-
Product Details
Brand: INSIZE
Model: 1148-100S
Country Of Origin: China
Features:
Non waterproof
Resolution: 0.01mm/0.0005"
Supplied with three interchangeable points (flat, spherical, disk)
Buttons: on/off, set, mm/inch, preset (+, -)
Automatic power off, move the digital unit to turn on power
Battery CR2032
Made of stainless steel
Optional accessory: extension base (code 6141, for 1148-120, 1148-120WL, 1148-200, 1148-200WL, 1148-300 and 1148-300WL)
| Type: | Digital Depth Gauge with Round Depth Bar |
| Range: | 0-100mm / 0-4" |
| Accuracy: | ±0.02mm |
| Resolution: | 0.01mm / 0.0005" |
| Material: | Stainless steel |
| Battery: | CR2032 |
| Buttons: | on/off, set, mm/inch, preset (+, -) |
| Data Output: | Yes (data interface) |
| Wireless Transmitter: | Optional (7315-1148, receiver required) |
| Waterproof: | No |
| Dimensions (L/d): | 200mm / 45mm |
| Included: | Three interchangeable points (flat, spherical, disk) |
The INSIZE 1148-100S Digital Depth Gauge with Round Depth Bar is a versatile precision measuring instrument designed for accurately measuring the depth of small holes (greater than Ø4mm) and the width and depth of grooves inside bores. As part of the 1148 Series, it is supplied with three interchangeable points (flat, spherical, and disk) to adapt to various measurement tasks. Made of durable stainless steel, this depth gauge offers a measuring range of 0-100mm (0-4") with an accuracy of ±0.02mm and a resolution of 0.01mm/0.0005". It includes buttons for on/off, set, mm/inch, and preset (+/-) functions, along with automatic power-off (reactivated by moving the digital unit) and a CR2032 battery. The gauge includes a data interface and is compatible with an optional wireless transmitter (7315-1148, receiver required). It is non-waterproof and ideal for industrial, automotive, and quality control applications.
INSIZE 1148-100S Digital Depth Gauge – Round Depth Bar, Interchangeable Points, Data Output
Measure the depth of small holes and internal grooves with precision using the INSIZE 1148-100S, a versatile digital depth gauge featuring a round depth bar and three interchangeable points. As part of the 1148 Series, this gauge is ideal for industrial, automotive, and quality control applications requiring accurate depth and groove measurements.
Key Features & Benefits:
-
Versatile Measurement: Measures the depth of small holes (>Ø4mm) and the width and depth of grooves inside bores.
-
Interchangeable Points: Supplied with three points (flat, spherical, and disk) to adapt to various measurement tasks.
-
High Resolution: Features 0.01mm/0.0005" resolution for precise measurements.
-
High Accuracy: Delivers ±0.02mm accuracy for reliable results.
-
Durable Construction: Made of stainless steel for long-lasting performance in demanding environments.
-
User-Friendly Functions: Includes on/off, set, mm/inch, and preset (+/-) buttons.
-
Automatic Power Off: Saves battery life, with power restored by moving the digital unit.
-
Data Interface: Supports data output for recording and analysis.
-
Wireless Compatibility: Compatible with optional wireless transmitter (7315-1148, receiver required).
-
Reliable Power: Powered by a CR2032 battery.
-
Non-Waterproof: Designed for dry measurement environments.
-
Optional Extension Base: Extension base (code 6141) available for larger models (1148-120, 1148-200, 1148-300).
