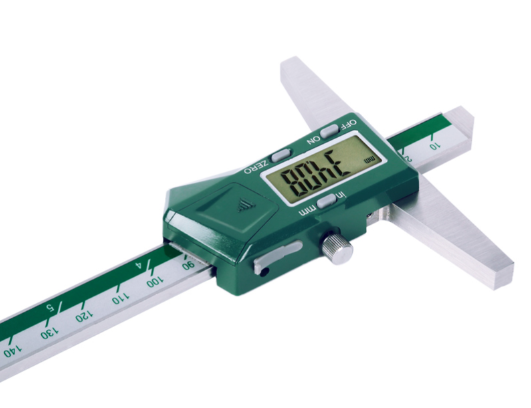

DIGITAL DEPTH GAUGE (base length 100mm)
BDT 6,845/-
Product Details
Brand: INSIZE
Model: 1141-150A
Country Of Origin: China
Features:
Non waterproof
Buttons: on/off, zero, mm/inch
Automatic power off, move the digital unit to turn on power
Meet DIN862 (except 0-500mm/0-20", 0-1000mm/0-40", 0-1500mm/0-60")
Battery CR2032
Made of stainless steel
| Type: | Digital Depth Gauge (Standard Type) |
| Range: | 0-150mm / 0-6" |
| Resolution: | 0.01mm / 0.0005" |
| Accuracy: | ±0.03mm |
| Material: | Stainless steel |
| Standard: | DIN862 |
| Battery: | CR2032 |
| Buttons: | on/off, zero, mm/inch |
| Data Output: | Yes (data interface) |
| Wireless Transmitter: | Optional (7315-25, receiver required) |
| Waterproof: | No |
| Dimensions (L/a/b/d): | 230mm / 6mm / 14.5mm / 100mm |
The INSIZE 1141-150A Digital Depth Gauge (Standard Type) is a precision measuring instrument designed for accurate depth measurement across a wide range of applications. As part of the 1141 Series, it features a sturdy stainless steel construction and meets DIN862 standards (except for larger models). The gauge offers a measuring range of 0-150mm (0-6") with a resolution of 0.01mm/0.0005" and an accuracy of ±0.03mm. It includes buttons for on/off, zero, and mm/inch conversion, along with automatic power-off (reactivated by moving the digital unit) and a CR2032 battery. The caliper includes a data interface and is compatible with an optional wireless transmitter (7315-25, receiver required). It is non-waterproof and ideal for industrial, automotive, and quality control applications requiring precise depth measurement.
INSIZE 1141-150A Digital Depth Gauge – Standard Type, Stainless Steel, Data Output
Measure depth with precision and reliability using the INSIZE 1141-150A, a standard type digital depth gauge designed for accurate depth measurement across a wide range of applications. As part of the 1141 Series, this gauge features a durable stainless steel construction and is ideal for industrial, automotive, and quality control applications.
Key Features & Benefits:
-
Standard Type Design: A versatile depth gauge suitable for a wide range of measurement tasks.
-
High Resolution: Features 0.01mm/0.0005" resolution for precise measurements.
-
High Accuracy: Delivers ±0.03mm accuracy for reliable results.
-
Durable Construction: Made of stainless steel for long-lasting performance in demanding environments.
-
Standards Compliant: Meets DIN862 standards (except for 0-500mm, 0-1000mm, and 0-1500mm models).
-
User-Friendly Functions: Includes on/off, zero, and mm/inch conversion buttons.
-
Automatic Power Off: Saves battery life, with power restored by moving the digital unit.
-
Data Interface: Supports data output for recording and analysis.
-
Wireless Compatibility: Compatible with optional wireless transmitter (7315-25, receiver required).
-
Reliable Power: Powered by a CR2032 battery.
-
Non-Waterproof: Designed for dry measurement environments.
-
Part of a Versatile Series: The 1141 Series includes models with ranges from 0-150mm up to 0-1500mm, with various base lengths (d) and wireless options.
