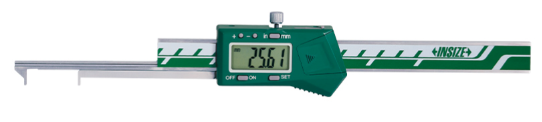

Digital Hook Calipers
BDT 36,090/-
Product Details
Brand: INSIZE
Model: 1100-60
Country Of Origin: China
Features:
Non waterproof.
Measure width and distance of grooves inside bores.
Resolution: 0.01mm/0.0005".
Buttons: on/off, set, mm/inch, preset (+, -).
Automatic power off, move the digital unit to turn on power.
Battery CR2032.
Data output.
Made of stainless steel.
| Type: | Digital Hook Calipers |
| External Range: | 0-60mm / 0-2.36" |
| Internal Range: | 2.1-60mm / 0.08-2.36" |
| Resolution: | 0.01mm / 0.0005" |
| Accuracy: | ±0.04mm |
| Material: | Stainless steel |
| Battery: | CR2032 |
| Buttons: | on/off, set, mm/inch, preset (+, -) |
| Data Output: | Yes (wired or wireless options) |
| Waterproof: | No |
The INSIZE 1100 Series Digital Hook Calipers are precision measuring instruments designed specifically for measuring the width and distance of grooves inside bores, a task that standard calipers cannot perform. Made of durable stainless steel, these calipers feature a resolution of 0.01mm/0.0005" and an accuracy of ±0.04mm. The external measuring range is 0-60mm (0-2.36"), while the internal groove measuring range is 2.1-60mm (0.08-2.36"). The digital unit includes buttons for on/off, set, mm/inch conversion, and preset (+/-) functions, along with automatic power-off and a data output feature. The calipers are powered by a CR2032 battery. Two models are available: the standard 1100-60 (with data interface, requiring optional wireless transmitter 7315-25 and receiver) and the 1100-60WL (with built-in wireless, requiring receiver code 7315-2/3/6/7/8/9). These calipers are ideal for industrial, automotive, and quality control applications requiring internal groove measurement.
INSIZE 1100 Series Digital Hook Calipers – Internal Groove & Bore Measurement
Measure internal grooves and bores with precision using the INSIZE 1100 Series Digital Hook Calipers, specialized instruments designed for tasks that standard calipers cannot perform. Made of durable stainless steel, these calipers are ideal for industrial, automotive, and quality control applications requiring accurate internal groove width and distance measurements.
Key Features & Benefits:
-
Specialized Hook Design: Specifically designed to measure the width and distance of grooves inside bores.
-
Dual Measuring Ranges: External range of 0-60mm (0-2.36") and internal groove range of 2.1-60mm (0.08-2.36").
-
High Resolution & Accuracy: Features 0.01mm/0.0005" resolution and ±0.04mm accuracy for precise measurements.
-
Durable Construction: Made of stainless steel for long-lasting performance in demanding environments.
-
User-Friendly Functions: Includes on/off, set, mm/inch conversion, and preset (+/-) buttons.
-
Automatic Power Off: Saves battery life, with power restored by moving the digital unit.
-
Data Output: Standard model (1100-60) includes data interface for wired data transfer (optional wireless transmitter 7315-25 and receiver required).
-
Built-in Wireless Option: Model 1100-60WL features built-in wireless for convenient data transmission (receiver 7315-2/3/6/7/8/9 required).
-
Reliable Power: Powered by a CR2032 battery.
-
Non-Waterproof: Designed for dry measurement environments.
