Digital Measuring Microscopes
BDT 396,653/-
Product Details
Brand: INSIZE
Model: ISM-DL300
Country Of Origin: China
Features:
1080P high-definition image
Built-in software without computer, operated by mouse
Take pictures, save to USB flash disk
Measurement results can be sent to Excel
Automatic white balance and exposure
Brightness, contrast ratio, gain are adjustable
| Sensor: | 1/2" CMOS, 2M Pixel |
| Resolution: | 1920Ã1080 (60fps) |
| Magnification: | 15X~100X (Standard) |
| Output: | HDMI |
| Dimensions: | 570Ã300Ã430mm |
| Net Weight: | 6.5kg |

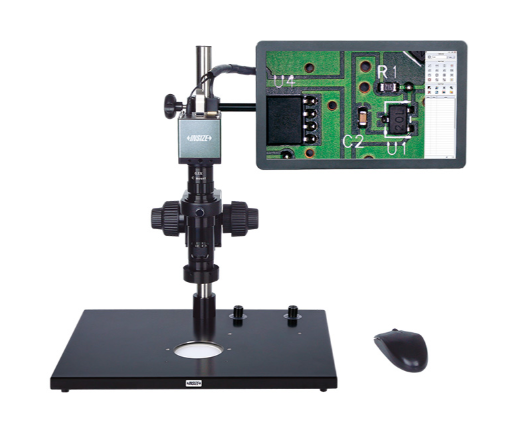

The INSIZE ISM-DL300 Digital Measuring Microscope is a versatile, standalone optical inspection system designed for fast, accurate, and computer-free dimensional analysis. Featuring a built-in measurement software and a bright 13.3-inch LCD monitor, it allows operators to view, measure, and document workpieces directly on the screen using an included mouse.
Equipped with a high-definition 1920x1080 CMOS sensor, it delivers crisp 1080P images at 60fps. The system features a 0.75X~5X step-zoom lens with a precise 2µm fine focus knob and an adjustable LED ring light. It includes automatic white balance and exposure, along with adjustable brightness, contrast, and gain. Users can easily capture photos or videos and save them directly to the included 16G USB flash disk, while measurement results can be instantly exported to Excel. The ISM-DL300 is the standard model for surface and dimensional inspection, while the ISM-DL301 variant adds bottom contour illumination for measuring transparent or through-holes.
INSIZE ISM-DL300 Digital Measuring Microscope – Standalone 1080P Inspection
Achieve fast, accurate, and computer-free visual inspection with the INSIZE ISM-DL300 Digital Measuring Microscope. Designed for modern quality control labs, electronics manufacturing, and precision engineering, this standalone system combines high-definition optics with an intuitive built-in software interface to streamline your dimensional measurements.
Key Features & Benefits:
-
Computer-Free Operation: Unlike traditional digital microscopes, the ISM-DL300 features built-in measurement software. You can perform complex measurements, calibrate, and analyze parts directly on the included 13.3-inch LCD monitor using the provided mouse—no PC required.
-
Exceptional Clarity: A 1/2" CMOS sensor captures images at a crisp 1920x1080 resolution and a smooth 60fps frame rate, ensuring you see every detail of your workpiece in high definition.
-
Precision Optics & Focus: Equipped with a 0.75X~5X step-zoom lens, 0.5X camera adapter, and 1X auxiliary objective. The 2µm fine focus knob allows for exacting focal adjustments, while the system automatically manages white balance and exposure.
-
Effortless Data Management: Capture high-resolution photos and videos and save them directly to the included 16G USB flash disk. Measurement results can be seamlessly exported to Excel for immediate reporting.
-
Expandable & Versatile: The system includes an adjustable LED ring light. For measuring contours or through-holes, the ISM-DL301 model is available. Optional X-Y metal or glass stages can be added for precise mechanical positioning.
