Digital Measuring Microscopes (Basic Type)
BDT 119,250/-
Product Details
Brand: INSIZE
Model: 5318-MD60
Country Of Origin: China
Features:
1080P high-definition image
Built-in software without computer, operated by mouse
Take pictures, save to USB flash disk
Measurement results can be sent to Excel
Brightness, contrast ratio, gain are adjustable
| Sensor: | 1/2.8" CMOS, 2M Pixel |
| Resolution: | 1920×1080 (60fps) |
| Magnification: | 12.5X~80X (Standard) |
| Measuring Accuracy: | ±0.02mm |
| Output: | HDMI |
| Dimensions: | 380×260×350mm |
| Net Weight: | 4.5kg |

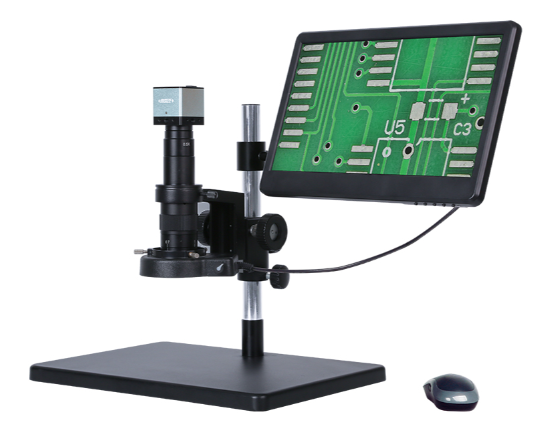

The INSIZE 5318-MD60 Digital Measuring Microscope (Basic Type) is a highly practical, standalone optical inspection system designed for fast and accurate visual analysis. As a "Popular Model," it provides an excellent entry point into digital metrology. Its standout feature is the built-in measurement software, allowing operators to perform measurements directly on the included 13.3" LCD monitor using a simple mouse interface, entirely without the need for an external computer.
Equipped with a 2M pixel CMOS sensor, it delivers crisp 1080P high-definition images at 60fps. The system includes a 0.7X~4.5X lens, a 0.5X camera adapter, and a 1X auxiliary objective, providing a standard magnification range of 12.5X to 80X. The software features customizable cross lines and scale lines, automatic brightness/contrast/gain adjustments, and allows users to save measurements directly to Excel or capture photos to the included USB flash disk. The basic MD60 model is designed without a stage (ideal for larger items placed directly on the base), while the MD60-XY variant includes a precision X-Y metal stage for smaller, high-accuracy parts.
INSIZE 5318-MD60 Digital Measuring Microscope – Standalone 1080P Inspection
Achieve fast, accurate, and computer-free visual inspection with the INSIZE 5318-MD60 Digital Measuring Microscope. Designed for modern quality control labs, electronics manufacturing, and precision engineering, this standalone "Basic Type" system combines high-definition optics with an intuitive built-in software interface to streamline your dimensional measurements.
Key Features & Benefits:
-
Computer-Free Operation: The ISM-DL300's built-in measurement software allows you to perform complex measurements, calibrate, and analyze parts directly on the included 13.3-inch LCD monitor using the provided mouse—no PC required.
-
Exceptional Clarity: A 1/2.8" CMOS sensor captures images at a crisp 1920x1080 resolution and a smooth 60fps frame rate, ensuring you see every detail of your workpiece in high definition.
-
Precision Optics & Focus: Equipped with a 0.7X~4.5X lens, 0.5X camera adapter, and 1X auxiliary objective. The system automatically manages white balance and exposure, while brightness, contrast, and gain are manually adjustable.
-
Customizable On-Screen Graphics: The software allows you to overlay cross lines and scale lines, with full control over the number, color, and position of the lines.
-
Effortless Data Management: Capture high-resolution photos and save them directly to the included 16G USB flash disk. Measurement results can be seamlessly exported to Excel.
-
Versatile Model Options: The standard MD60 is designed without a stage (ideal for larger items), while the MD60-XY model includes an X-Y metal stage for precise mechanical positioning of smaller parts.
