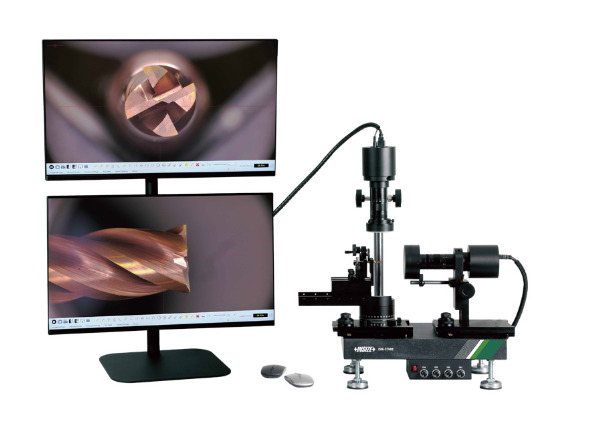

Dual-Display Cutting Tools Microscope
BDT 0/-
Product Details
Brand: INSIZE
Model: ISM-CT600
Country Of Origin: China
Features:
27" dual display, 4K high-definition image
With a rotary slide table for multi-angle tool observation
Display cross hairs
Measure point, line, circle, parallel lines, angle, etc
Take pictures and videos, saved to USB flash disk
| Cutting Tools Range: | Ø3~20mm, length 20~60mm |
| Resolution: | 3840×2160 (4K) |
| Magnification: | 23X~230X |
| Measuring Accuracy: | ±0.02mm |
| Rotary Table: | 90mm slide, 0~220° rotation |
| Dimensions: | 1150×400×880mm |
| Net Weight: | 43kg |
The INSIZE ISM-CT600 Dual-Display Cutting Tools Microscope is a premium, 4K high-definition inspection system designed for comprehensive tool geometry analysis. Its standout feature is the 27-inch dual-display setup and a built-in rotary slide table (90mm sliding distance, 0~220° rotation range), which allows operators to view and measure cutting tools from multiple angles without needing to unclamp them.
Equipped with a 0.6X~6X step-zoom lens and dual illumination (upper and side), the system provides crystal-clear 3840×2160 resolution images. The built-in software features on-screen crosshairs and a comprehensive suite of measurement tools, including point, line, circle, parallel lines, and angle measurement. This enables precise evaluation of complex features such as core thickness, helix angle, and rear corner widths. The system operates entirely standalone, allowing users to take pictures and record videos directly to a USB flash disk. Complete with two monitors, two mice, and a glass calibration plate, the ISM-CT600 is a powerful turnkey solution for demanding tool inspection.
INSIZE ISM-CT600 Dual-Display Cutting Tools Microscope – 4K Multi-Angle Inspection System
Achieve the highest level of precision in your tool room with the INSIZE ISM-CT600 Dual-Display Cutting Tools Microscope. Engineered for professional machinists and quality control labs, this advanced 4K inspection system combines an expansive dual-monitor setup with a unique rotary slide table, allowing you to visually inspect and measure cutting tools from virtually any angle without altering the setup.
Key Features & Benefits:
-
Immersive 4K Dual Display: Comes with two included 27" monitors displaying ultra-sharp 3840×2160 resolution images, making it easy to view macro tool features alongside micro cutting edges simultaneously.
-
Dynamic Rotary Table: The integrated rotary table features a 90mm sliding distance and a 0~220° rotation range. This enables seamless multi-angle observation of end mills, ball cutters, and slot milling cutters.
-
Advanced Measurement Tools: The onboard software includes movable crosshairs and a full suite of measurement tools to calculate point-to-point distances, angles, circles, and parallel lines, achieving a measurement accuracy of ±0.02mm.
-
Precision Optics & Lighting: A 0.6X~6X step-zoom lens provides 23X to 230X magnification, complemented by independently adjustable upper and side LED illumination to highlight complex geometries like helix angles and rear corners.
-
Standalone Data Capture: No external computer is required. Operators can take high-resolution pictures and record videos, saving them directly to a USB flash disk.
-
Complete Turnkey Package: Includes the main unit, two 27" displays, two mice, a glass calibration plate, and two HDMI cables for immediate deployment.
