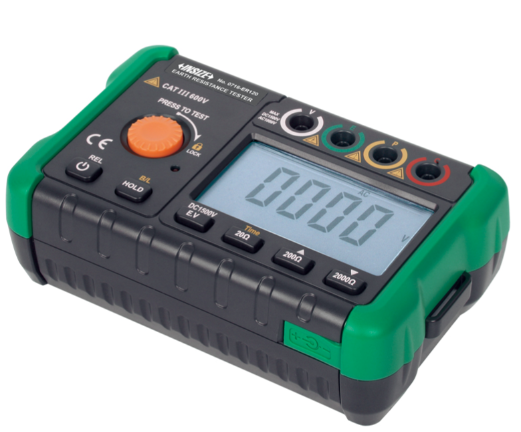

EARTH RESISTANCE TESTER
BDT 45,880/-
Product Details
Brand: INSIZE
Model: 0716-ER120
Country Of Origin: China
Features:
Timed measurement function.
Auto power off.
Display with backlight.
Data hold.
Low battery indication.
| Type: | Earth Resistance Tester |
| Earth Resistance Range: | 20Ω / 200Ω / 2000Ω |
| Earth Resistance Resolution: | 0.01Ω / 0.1Ω / 1Ω |
| Earth Resistance Accuracy: | ±(2%+10d) / ±(2%+3d) |
| AC Earth Voltage Range: | 1000V |
| AC Earth Voltage Accuracy: | ±(2%+5d) |
| DC Voltage Range: | 1500V |
| DC Voltage Accuracy: | ±(1%+5d) |
| Test Methods: | 2-wire testing, 3-wire testing |
| Power Supply: | 8×1.5V AA batteries |
| Dimension: | 178×110×59mm |
| Weight: | 600g |
The INSIZE 0716-ER120 Earth Resistance Tester is a professional-grade instrument designed for accurate measurement of earth resistance, AC earth voltage, and DC voltage. It is an essential tool for electricians, engineers, and safety inspectors working with grounding systems, electrical installations, and lightning protection. The device offers three earth resistance ranges (20Ω, 200Ω, and 2000Ω) with a minimum resolution of 0.01Ω and accuracy of ±(2%+10d) for the 20Ω range. It also measures AC earth voltage up to 1000V and DC voltage up to 1500V, supporting both 2-wire and 3-wire testing methods. Key features include a timed measurement function, auto power off, backlit display, data hold, and low battery indication. The tester is powered by eight 1.5V AA batteries, measures 178 x 110 x 59 mm, and weighs 600g. The standard delivery includes the main unit, 5 test leads, 2 auxiliary grounding rods, and 8 AA batteries.
INSIZE 0716-ER120 Earth Resistance Tester – Ground Resistance, AC/DC Voltage Meter
Ensure electrical safety and grounding integrity with the INSIZE 0716-ER120, a professional-grade earth resistance tester designed for accurate measurement of earth resistance, AC earth voltage, and DC voltage. Ideal for electricians, engineers, and safety inspectors, this instrument is essential for verifying grounding systems, lightning protection, and electrical installations.
Key Features & Benefits:
-
Accurate Earth Resistance Measurement: Offers three ranges (20Ω, 200Ω, 2000Ω) with a minimum resolution of 0.01Ω and high accuracy.
-
Comprehensive Voltage Testing: Measures AC earth voltage up to 1000V and DC voltage up to 1500V.
-
Flexible Test Methods: Supports both 2-wire and 3-wire testing for versatile applications.
-
Timed Measurement Function: Allows for precise, time-controlled readings.
-
Clear Backlit Display: Features a backlit LCD for easy reading in low-light conditions.
-
User-Friendly Features: Includes data hold, auto power off, and low battery indication.
-
Complete Kit: Standard delivery includes the main unit, 5 test leads, 2 auxiliary grounding rods, and 8 AA batteries.
-
Portable & Durable: Measures 178 x 110 x 59 mm and weighs 600g for convenient field use.
-
Reliable Power: Operates on eight 1.5V AA batteries.
