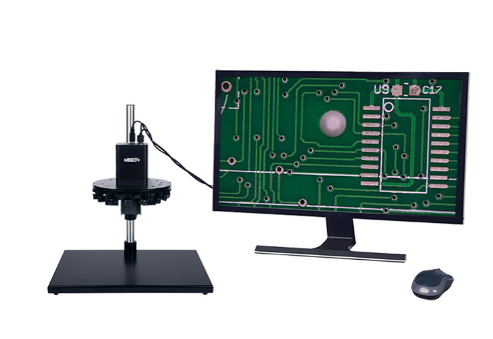

High-Definition Auto Focus Digital Microscope (Large View Field)
BDT 349,499/-
Product Details
Brand: INSIZE
Model: 5320-AF410
Country Of Origin: China
Features:
Auto focus camera
Take pictures and videos
Built-in measuring software
Automatic exposure, sharpening, denoising and white balance
4K/1080P automatically switched by display resolution
Display actual magnification
Digital magnification
Motorized light control
Display cross hair and graticule
Confirm camera's MAC address
| Sensor: | 1/2.8" CMOS, 8M Pixel |
| Resolution: | 3840Ã2160 (60fps) |
| Magnification: | 2.4X~43.7X |
| View Field: | 14.2Ã8~255Ã145mm |
| Output: | HDMI / USB / LAN |
| Dimensions: | 400Ã300Ã450mm |
| Net Weight: | 5.8kg |
The INSIZE 5320-AF410 High-Definition Auto Focus Digital Microscope is an advanced, standalone optical inspection system that combines a large view field with ultra-high 4K resolution. Designed to operate without a computer, it features built-in measurement software that can be controlled directly via a mouse and HDMI monitor, while simultaneously offering LAN and USB outputs for connection to a PC for advanced image processing and data transfer.
Equipped with an auto-focus camera and a motorized multi-zone LED ring light (where the direction and brightness of each bulb can be independently controlled), it delivers exceptional image clarity and consistent illumination across challenging surfaces. The system supports Focus Stacking for large depth-of-field imaging and DXF import for overlay comparison. The included software provides robust features like automatic measurement of geometric shapes (polygons, circles, rectangles), real-time gray calibration, flat field correction, and 3D plot visualization, making it an incredibly versatile tool for quality control, electronics inspection, and precision engineering.
INSIZE 5320-AF410 Auto Focus Digital Microscope – 4K Large View Field Inspection
Experience the ultimate in digital optical metrology with the INSIZE 5320-AF410 High-Definition Auto Focus Digital Microscope. Designed for modern quality control laboratories, electronics manufacturing, and precision engineering, this advanced system delivers ultra-high 4K resolution, a massive view field, and powerful built-in measurement capabilities, all without requiring a dedicated computer.
Key Features & Benefits:
-
True 4K Clarity & Auto Focus: Equipped with an 8M pixel CMOS sensor, it outputs stunning 3840x2160 resolution at a smooth 60fps. The auto-focus camera ensures your subject is always sharp, and the focus stacking function builds perfectly focused images from varying depths.
-
Dual Connectivity (Standalone or PC): Uniquely designed to be connected to a TV (via HDMI) and a PC (via USB/LAN) simultaneously. Use the included mouse to perform quick, on-screen measurements directly on the TV, or utilize the PC for advanced image stitching, 3D plotting, and flat field correction.
-
Advanced Motorized Illumination: Features a high-intensity LED ring light where the direction and brightness of each zone can be independently controlled. This eliminates shadows and glare, providing perfect lighting for reflective or uneven surfaces.
-
Comprehensive Measurement Suite: The TV software supports automatic measurement of polygons, rectangles, circular rings, and circles. The PC professional software offers deep image processing, DXF import for CAD overlays, real-time gray calibration, and RGB histogram observation.
-
Turnkey Setup: The standard delivery includes the main unit with a sturdy stand, LED illumination, a 32G memory card, mouse, HDMI/USB cables, and a power adapter, making it ready for immediate deployment.
