Product Details
Brand: INSIZE
Model: ISD-H210
Country Of Origin: China
Features:
High-definition image
Large view field
Electronic magnification feedback lens: when the objective lens magnification is changed manually, the software automatically selects the corresponding pre-calibration data and calibration is not needed
| Measuring Range (X×Y×Z): | 200×100×150mm |
| Accuracy: | ≤(2.5+L/100)µm |
| Resolution: | 0.5µm |
| Magnification: | 27.4X~351X |
| Max. Workpiece Weight: | 20kg |
| Drive Method: | Manual |
| Dimensions: | 540×560×850mm |
| Weight: | 110kg |

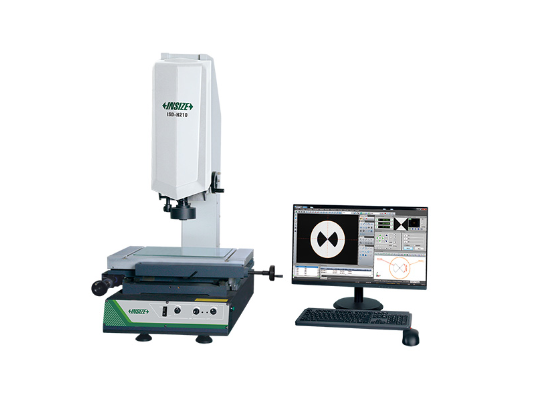

The INSIZE ISD-H210 High-Definition Manual Vision Measuring System is a versatile, benchtop optical metrology instrument designed for precise 2D dimensional inspection. It features a high-definition giga-bit network camera and a large view field, making it ideal for inspecting intricate electronic components, stamped parts, and small machined profiles.
A standout feature of the ISD-H210 is its Electronic magnification feedback lens. Because the drive method is manual, operators physically adjust the zoom. However, the system's software features electronic feedback that automatically selects the corresponding pre-calibration data when the magnification changes, eliminating the need for time-consuming recalibration. The system offers a 0.58X~7.5X zoom objective and a 200×100×150mm measuring range. It comes as a complete turnkey solution, including a computer, calibration glass chart, foot switch, and advanced measurement software. Optional upgrades include a touch probe for 3D measurement and coaxial lighting for highly reflective surfaces.
INSIZE ISD-H210 High-Definition Manual Vision Measuring System – Precision Optical Metrology
Achieve accurate, high-speed non-contact measurements with the INSIZE ISD-H210 High-Definition Manual Vision Measuring System. Designed for quality control labs and manufacturing environments, this benchtop video measuring machine combines a high-resolution giga-bit camera with a unique electronic magnification feedback lens, streamlining the inspection process for small-to-medium parts.
Key Features & Benefits:
-
Auto-Calibrating Zoom Lens: The innovative electronic magnification feedback system detects manual zoom changes and automatically applies the correct calibration data, eliminating the downtime associated with traditional manual zoom lenses.
-
Superior Image Quality: The giga-bit network camera delivers high-definition images, ensuring sharp edge detection and accurate feature extraction on complex geometries.
-
Manual Precision Stage: The manual X/Y drive offers tactile control over the 200×100mm stage, which boasts a resolution of 0.5µm, a repeatability of 2µm, and can support parts up to 20kg.
-
Versatile Illumination: Features adjustable LED lighting for both surface and contour measurements, ensuring optimal contrast for a wide variety of materials.
-
Expandable Capabilities: Can be upgraded with an optional Renishaw-style touch probe (ISD-V-PROBE) for 3D measurement, or a coaxial light lens upgrade (ISD-H210CL) for highly reflective surfaces.
-
Complete Turnkey Package: Standard delivery includes the main unit, a computer, calibration glass chart, clay, foot switch, and anti-dust cover.
