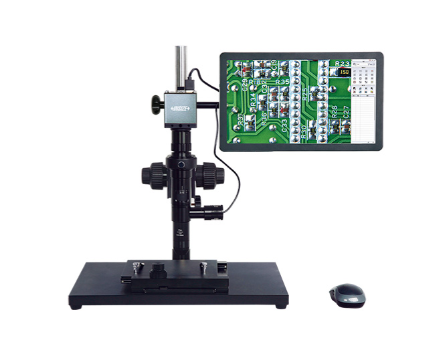

High Magnification Measuring Microscope
BDT 0/-
Product Details
Brand: INSIZE
Model: ISM-DL302
Country Of Origin: China
Features:
1080P high-definition image
Maximum 920X optical magnification (using camera adapter 1X, optional)
Built-in software without computer, operated by mouse
Solid base and column to avoid lens shaking during focusing
Software is included, refer to page 807 for details
| Sensor: | 1/2" CMOS, 2M Pixel |
| Resolution: | 1920Ã1080 (60fps) |
| Magnification: | 70X~460X (Standard), up to 920X (Optional) |
| Output: | HDMI |
| Dimensions: | 570Ã300Ã430mm |
| Net Weight: | 15kg |
The INSIZE ISM-DL302 High Magnification Measuring Microscope is a specialized, standalone optical inspection system engineered for detailed observation and precise measurement of micro-components. Delivering crisp 1080P high-definition imagery directly to the included 13.3-inch LCD monitor, it operates entirely without a computer using its intuitive built-in software.
Designed for stability, the system features a solid base and column to completely eliminate lens shaking during focus adjustments, ensuring highly accurate measurements. It comes equipped with a 0.5X camera adapter and a 4.5X auxiliary objective, providing a standard magnification range of 70X to 460X. With the optional 1X camera adapter, magnification can reach an impressive 920X. The system includes a precise X-Y metal stage, coaxial illumination, and a 2µm fine focus knob, making it an essential tool for inspecting semiconductors, fine machined parts, and intricate surface structures.
INSIZE ISM-DL302 High Magnification Measuring Microscope – Standalone Ultra-Zoom Inspection
Achieve extreme magnification and precise measurement with the INSIZE ISM-DL302 High Magnification Measuring Microscope. Designed for advanced electronics inspection, metallurgy, and precision engineering, this powerful standalone system allows users to view and measure microscopic features directly on the included 13.3-inch LCD monitor without the need for a computer.
Key Features & Benefits:
-
Extreme Optical Magnification: With the included 0.5X adapter and 4.5X auxiliary objective, it provides a standard 70X to 460X magnification. By upgrading to the optional 1X camera adapter, magnification can reach an incredible 920X for the most demanding microscopic inspections.
-
Standalone Operation: The camera features built-in measurement software, allowing operators to use the included mouse to measure, calibrate, and analyze images directly on the screen.
-
Rock-Solid Stability: Featuring a robust solid base and column, the system completely eliminates lens shaking during the 2µm fine-focus adjustments, ensuring highly repeatable and accurate results.
-
Precision Measurement & Positioning: Comes standard with an X-Y metal stage for accurate mechanical positioning, and achieves measuring accuracy down to ±4µm at higher magnifications.
-
Advanced Illumination: Equipped with coaxial illumination, which is ideal for inspecting highly reflective surfaces, wafers, and fine metallurgical structures, as well as a standard LED ring light.
-
Complete Turnkey Kit: Includes the main unit, 13.3" LCD, calibration plate, 16G USB drive, X-Y stage, and all necessary cables.
