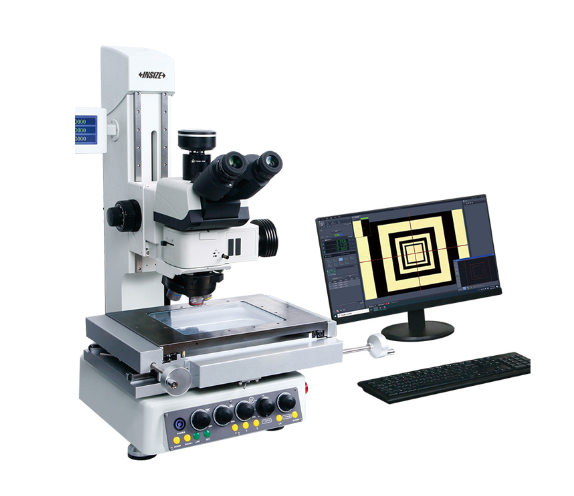

High Magnification Toolmaker Measuring Microscopes (Advanced Type)
BDT 0/-
Product Details
Brand: INSIZE
Model: ISD-TM215
Country Of Origin: China
Features:
For precision measurement and observation of industrial devices.
ECGO infinite chromatic aberration correction optical system.
High-density super power white LED chip array, high color rendering index, long life.
High precision linear scales.
Adopting motorized objective lens switching and supporting light intensity management.
Motorized Z-axis and focusing assist are included.
Measuring software is included, in-field image direct measurement, quick reading, out of image measurement for large workpieces, accurate measurement through image point selection, vector/layer construction.
| X/Y Axis Travel: | 200Ã150mm |
| Resolution: | 0.1Âĩm |
| Accuracy: | â¤(2.5+L/50)Âĩm |
| Optical Magnification: | 50X~500X (up to 1000X optional) |
| Max. Workpiece Weight: | 30kg |
| Dimensions: | 675Ã645Ã785mm |
| Net Weight: | 125kg |
The INSIZE ISD-TM215 High Magnification Toolmaker Measuring Microscope (Advanced Type) is a premium, high-precision optical instrument designed for the rigorous measurement and observation of complex industrial devices. Featuring an ECGO infinite chromatic aberration correction optical system and a high-density white LED array, it delivers exceptionally clear, true-to-color images.
This advanced system is equipped with motorized objective lens switching (5X, 10X, 20X, and 50X included) and a motorized Z-axis with focusing assist, streamlining complex inspection routines. It offers a versatile observation tube with adjustable inclination (15°~45°) and Kohler illumination capable of bright field, dark field, and polarized light microscopy. The system includes a 20M pixel camera and a comprehensive measuring software suite that enables direct in-field measurement, out-of-image measurement for large parts, and vector/layer construction, making it an elite tool for demanding metrology environments.
INSIZE ISD-TM215 Toolmaker Measuring Microscope – Advanced High-Magnification Metrology
Experience the pinnacle of optical measurement precision with the INSIZE ISD-TM215 High Magnification Toolmaker Measuring Microscope. Designed for advanced manufacturing, tool rooms, and R&D laboratories, this "Advanced Type" instrument combines superior optics with motorized automation to deliver flawless measurement and observation of intricate industrial components.
Key Features & Benefits:
-
Uncompromising Optical Clarity: Equipped with an ECGO infinite chromatic aberration correction system and a high-density white LED array, ensuring bright, high-color-rendering images without distortion.
-
Automated Precision: Features motorized objective lens switching (includes 5X, 10X, 20X, and 50X objectives) and a motorized Z-axis with focusing assist, dramatically reducing operator fatigue during long inspection sessions.
-
Versatile Illumination Options: The Kohler illumination system supports bright field, dark field, and polarized light methods, allowing for clear observation of challenging surface finishes and structures.
-
High-Definition Camera: Includes a 20M pixel camera with a 0.63X adjustable focus adapter, providing stunning digital magnification (150X~1500X on a 23.8" monitor).
-
Comprehensive Measurement Software: The included software allows for direct in-field measurements, precise point selection, and the ability to measure large workpieces outside the current field of view.
-
Ergonomic & Robust: Features a 15°-45° adjustable binocular observation tube and a heavy-duty stage supporting up to 30kg, ensuring comfort and stability.
