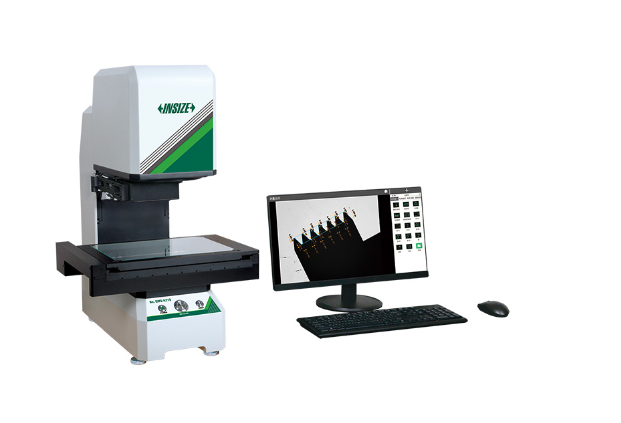

High Precision Quick Measurement System
BDT 0/-
Product Details
Brand: INSIZE
Model: QMS-H210
Country Of Origin: China
Features:
One or more workpieces can be measured by one step operation
Place workpieces at any position
Focus and measure automatically
Measurement of 999+dimensions and 300+workpieces
Suitable for parts with high precision for medium and small sizes
| Measurement Range: | Wide view field: 210×130mm; Small view field: 200×100mm |
| Measurement Accuracy (without stitching): | ±2µm (wide) / ±0.7µm (small) |
| Repeatability: | ±1µm (wide) / ±0.25µm (small) |
| Max. Workpiece Weight: | 5kg |
| Measurement Time: | <2s |
| Dimensions: | 460×515×740mm |
| Net Weight: | 45kg |
The INSIZE QMS-H210 High Precision Quick Measurement System is an advanced, fully automated 2D optical measuring instrument designed for rapid, sub-micron precision inspection of medium and small components, including threads and chamfers. Featuring a dual-field, dual-telecentric low-distortion lens, it provides exceptional clarity and accuracy across both a wide view field (210×130mm) and a specialized small view field (200×100mm).
Engineered for maximum throughput, the QMS-H210 allows operators to place one or multiple workpieces anywhere on the automatic stage. The system automatically focuses, identifies the parts, and measures up to 999 dimensions across more than 300 workpieces in a single step—accomplishing this in under 2 seconds. Its advanced stitching technology allows it to accurately measure dimensions that exceed the standard view field by seamlessly combining multiple images, achieving up to ±0.7µm accuracy. The system includes a computer and powerful software that automatically measures widths, holes, rings, and angles, stores results, and categorizes parts into OK and NG counts, making it the ultimate turnkey solution for high-speed, high-precision quality control.
INSIZE QMS-H210 High Precision Quick Measurement System – Sub-Micron 2D Optical Inspection
Elevate your quality control capabilities with the INSIZE QMS-H210 High Precision Quick Measurement System. Designed for manufacturing environments that demand the highest levels of accuracy for small and medium components, this advanced 2D optical vision system combines dual-telecentric optics with intelligent stitching technology to deliver sub-micron precision and rapid, fully automated measurements.
Key Features & Benefits:
-
Sub-Micron Accuracy: The low-distortion lens system provides an incredible ±0.7µm measurement accuracy and ±0.25µm repeatability in the small view field, perfect for inspecting fine features like threads and chamfers.
-
Advanced Image Stitching: Exceed the standard measurement range by utilizing the system's stitching function, allowing you to measure larger features or multiple parts seamlessly.
-
Blazing Fast Throughput: The system automatically focuses and measures parts in under 2 seconds. Place one or multiple workpieces anywhere on the stage, and the software will instantly measure up to 999 dimensions across 300+ parts in a single step.
-
Intelligent Software Suite: The included software automatically measures widths, holes, rings, and angles simultaneously. It automatically stores measurement results and maintains a real-time count of OK and NG parts, eliminating manual sorting errors.
-
Superior Illumination: Equipped with telecentric green backlighting and an electric 4-zone circular white/green ring light to highlight complex edges. Optional coaxial lighting is available.
-
Complete Turnkey Package: Standard delivery includes the main unit, a computer, and the full software suite. Optional accessories include a rotary table, laser sensor, and CAD import function.
