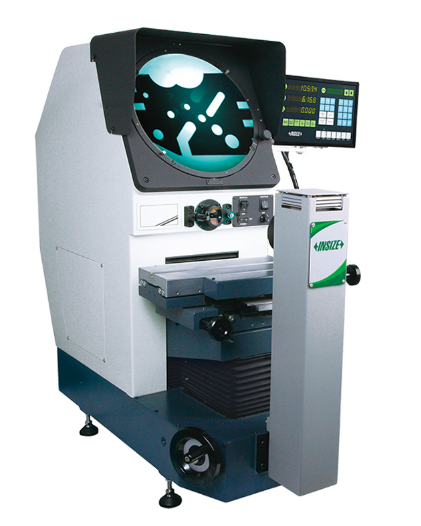

Horizontal Profile Projectors
BDT 0/-
Product Details
Brand: INSIZE
Model: ISP-W3020
Country Of Origin: China
Features:
Heavy-Duty Capacity: Supports workpieces up to 50kg for large-scale inspection.
Horizontal Optical Axis: Ideal for measuring long or heavy parts that are difficult to mount vertically.
Large Stage Travel: Features a 200×100mm X-Z travel range with 0.5µm resolution and a ±15° turning range.
Dual Illumination: Adjustable 24V/150W halogen lamps for both contour and surface lighting with position-adjustable fiber optics.
Advanced Data Processing: RS232C output with comprehensive geometric measurement functions.
Large Viewing Screen: Ø300mm screen with 360° rotation for detailed profile analysis.
| Type: | Horizontal Profile Projector |
| Max. Load Capacity: | 50kg |
| X-Z Stage Travel: | 200×100mm |
| Projector Screen: | Ø300mm |
| Magnification: | 10X (included) |
| Data Output: | RS232C |
| Dimensions: | 830×1090×1010mm |
| Weight: | 160kg |
The INSIZE ISP-W3020 Horizontal Profile Projector is a heavy-duty, precision optical measuring instrument designed for non-contact inspection of large and heavy workpieces. Its horizontal optical axis and robust design allow it to accommodate components weighing up to a massive 50kg.
Equipped with a large Ø300mm projection screen featuring 360° rotation, it provides clear, erect images for accurate profile comparison. The machine boasts a generously sized X-Z stage (200×100mm travel) with a fine 0.5µm resolution, alongside a ±15° turning range. Illumination is highly versatile, utilizing 24V/150W halogen lamps for both contour and surface lighting, with position-adjustable fiber optics to highlight complex geometries. The digital data processing unit offers a wide array of geometric calculation functions (points, lines, circles, angles, coordinate transformations) and outputs data via RS232C. It comes complete with a 10X lens, foot-switch, and all necessary accessories for immediate deployment in a rigorous QC environment.
INSIZE ISP-W3020 Horizontal Profile Projector – Heavy-Duty Optical Comparator
Achieve precise, non-contact measurement of large and heavy components with the INSIZE ISP-W3020 Horizontal Profile Projector. Designed for demanding manufacturing and quality control environments, this robust optical comparator features a horizontal optical axis and a heavy-duty stage capable of supporting workpieces up to 50kg, making it ideal for inspecting long shafts, large machined blocks, and heavy castings.
Key Features & Benefits:
-
High Load Capacity: The specially designed stage supports heavy parts up to 50kg without deflection, ensuring accurate measurements on substantial components.
-
Generous Stage Travel: Offers an impressive 200×100mm X-Z stage travel range, a ±15° turning range, and a 0.5µm resolution, with an accuracy of (3.5+L/50)µm.
-
Large Projection Screen: Features a Ø300mm screen with 360° rotation and a 0.01" resolution, equipped with cross-hair reference lines for precise alignment.
-
Versatile Illumination: Dual 24V/150W halogen lamps provide contour lighting (adjustable brightness) and surface lighting (via two position-adjustable fiber optic cables), ensuring optimal visibility for any feature.
-
Advanced Digital Readout: The data processing unit displays X-Z stage travel and screen rotation, and performs complex geometric calculations including point/line coordinates, circle radii, angles, distances, and coordinate transformations. Data outputs via RS232C.
-
Complete Turnkey Kit: Supplied with a 10X lens, foot-switch, overlay chart clips, and an anti-dust cover. A wide range of optional lenses (20X, 50X, 100X) and fixtures (rotary table, V-block, vise) are available.
