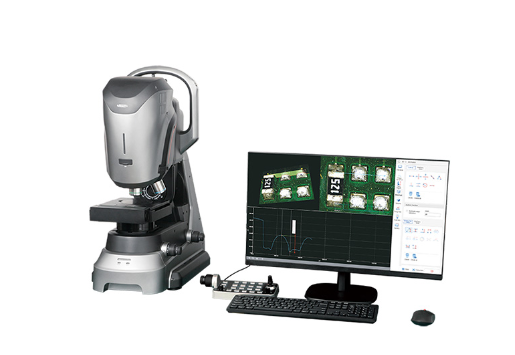

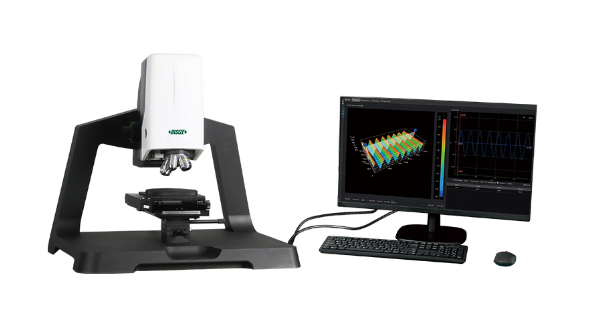

Large Depth Of Field 3D Measuring Microscope (Advanced Type)
BDT 0/-
Product Details
Brand: INSIZE
Model: ISM-H5000
Country Of Origin: China
Features:
High definition telecentric imaging lens
Auto focus
4 motorized switching objectives
Split-screen display
Rotatable stage
Take picture and video
Multiple illumination options for different products and scenarios
Elimination of reflections and dark field halos, HDR, optical shadows
Automatic stitching for large field view and measurement after stitching
Measurements can be saved in reports and exported
| Magnification: | 30X~6000X |
| Tilting Angle: | -89°~+89° |
| Camera: | 12.22M (1/1.7" CMOS) |
| Display: | 27" 4K (3840Ã2160) |
| Stage: | Motorized X, Y, θ (40x40mm range) |
| Dimensions: | 600Ã320Ã710mm |
| Net Weight: | 70kg |
The INSIZE ISM-H5000 Large Depth of Field 3D Measuring Microscope (Advanced Type) is a cutting-edge, fully motorized inspection system designed for comprehensive 2D and 3D surface analysis. Featuring a unique tiltable observation head (-89° to +89°) and stereoscopic 3D imaging, it allows users to inspect complex geometries from virtually any angle.
Equipped with a high-definition telecentric lens and 4 motorized switching objectives (1.5X, 5X, 20X, 50X), it achieves a massive magnification range of 30X to 6000X. The system is built around a motorized XYZ stage and dual motorized Z-axes (upper and lower), ensuring highly precise, automated focus stacking and image stitching. Advanced illumination options—including bright field, dark field, hybrid, and projected lighting—combined with software tools for HDR and halo elimination, guarantee crystal-clear images on highly reflective or challenging surfaces. The included 27" 4K monitor and powerful analysis software (with 2D/3D measurement, plane measurement, and profile height analysis) make this a complete, turnkey metrology solution.
INSIZE ISM-H5000 3D Measuring Microscope – Advanced Tiltable Metrology System
Experience unparalleled versatility in surface inspection with the INSIZE ISM-H5000 Large Depth of Field 3D Measuring Microscope. Designed for advanced manufacturing, electronics, and materials research, this flagship model combines stereoscopic 3D imaging with a fully motorized platform to deliver high-precision 2D and 3D measurements on complex parts.
Key Features & Benefits:
-
Tiltable Stereoscopic Imaging: The entire optical head can tilt from -89° to +89°, allowing operators to view sidewalls, undercuts, and complex geometries that are impossible to inspect with standard upright microscopes.
-
Motorized Precision: Features a motorized XYZ axis and a rotatable θ stage, enabling automated focus stacking, map navigation, and seamless large-area image stitching.
-
Exceptional Optics & Illumination: Equipped with a high-definition telecentric lens and 4 motorized objectives. It offers advanced lighting scenarios (bright field, dark field, hybrid, projected) and software tools to eliminate reflections and ring halos, ensuring perfect image clarity.
-
Ultra-High Resolution: A 12.22M pixel CMOS sensor captures stunning detail, displayed on the included massive 27" 4K monitor.
-
Comprehensive Measurement Software: The intuitive software provides automatic edge detection, plane measurements (distance, angle, radius, area), and 3D profile height measurements. Results can be easily exported to Excel.
-
Complete Turnkey Setup: Includes the main unit, computer, 16G USB drive, glass calibration plate, anti-dust cover, and a dedicated hardware controller.
