Long Working Distance Stereo Microscopes (Low Magnification)
BDT 32,580/-
Product Details
Brand: INSIZE
Model: 5305-ZS80
Country Of Origin: China
Features:
Extended Working Distance: 115mm of clearance provides ample space for tools and hands.
Flexible Positioning: The gooseneck arm allows for versatile, multi-angle positioning.
Wide Field of View: Ø20mm view field for observing larger areas at once.
Sturdy Base: The heavy metal base ensures stability during delicate operations.
Ergonomic Viewing: Adjustable pupil distance and diopter correction.
Expandable System: Compatible with optional higher-magnification eyepieces and an LED ring light.
| Magnification: | 8X |
| Eyepieces: | 10X wide field (Ã20mm) |
| Objective: | 0.8X |
| Working Distance: | 115mm |
| Max. Workpiece Height: | 100mm |
| Weight: | 3.7kg |

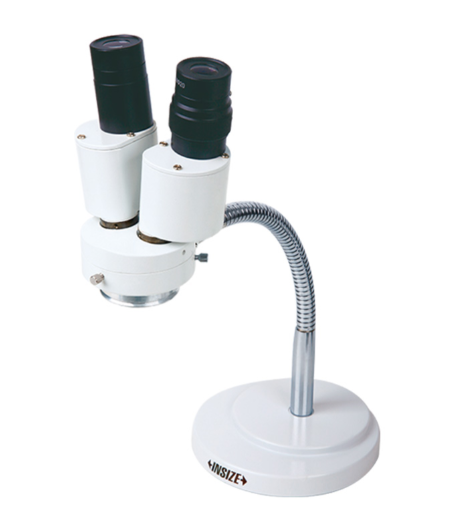

The INSIZE 5305-ZS80 Long Working Distance Stereo Microscope is a specialized optical instrument designed for low-magnification inspection and assembly tasks requiring maximum clearance. Mounted on a sturdy, round metal base with a highly flexible arm, it allows operators to easily position the microscope head precisely where needed for optimal viewing angles.
With an impressive 115mm working distance, it provides exceptional room for tools, soldering irons, or hands, making it ideal for intricate electronics work, assembly, and repair. It offers a fixed 8X total magnification via a 0.8X objective and 10X wide-field eyepieces (Ø20mm). The optics deliver a bright, clear 3D image with a large depth of field. It features a ±5 diopter adjustment on one eyepiece and an adjustable interpupillary distance (55-75mm) for user comfort. The system is ready to use out of the box, including a pair of 10X eyepieces, the 0.8X objective, and an anti-dust cover.
INSIZE 5305-ZS80 Long Working Distance Stereo Microscope – Flexible Low-Magnification Inspection
Optimize your assembly and inspection workflows with the INSIZE 5305-ZS80 Long Working Distance Stereo Microscope. Designed for electronics technicians, hobbyists, and quality control professionals, this specialized stereo microscope offers excellent clearance and flexibility, making it the perfect tool for soldering, intricate assembly, and detailed repair work.
Key Features & Benefits:
-
Exceptional Clearance for Tools: The standout feature is the generous 115mm working distance. This provides plenty of room to maneuver soldering irons, tweezers, and other tools under the lens without obstructing your view.
-
Fully Adjustable Flexible Arm: Mounted on a durable metal base, the highly flexible gooseneck arm allows you to precisely position the optical head at virtually any angle or height. This makes it incredibly easy to inspect large or awkwardly shaped workpieces.
-
Clear, Low-Magnification Optics: Equipped with a 0.8X objective and 10X wide-field eyepieces, it provides a fixed 8X magnification. This low-magnification setup delivers a bright, clear 3D image with a large depth of field and a wide Ø20mm view field.
-
Comfortable Viewing: Features a ±5 diopter adjustment on one eyepiece to compensate for individual vision differences, along with an adjustable interpupillary distance (55-75mm) to reduce eye strain during long sessions.
-
Upgradeable and Versatile: The system is fully expandable. Enhance your inspection capabilities with optional 5X, 15X, or 20X eyepieces for higher magnification, or attach the optional LED ring light (ISM-ZS-RL) for bright, shadow-free illumination.
-
Complete Package: Comes standard with the main unit, a pair of 10X eyepieces, a 0.8X objective, and an anti-dust cover.
