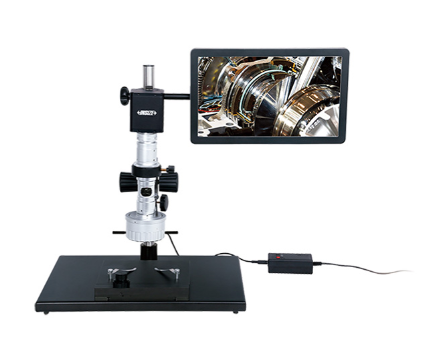

Manual 3D Rotation Microscope
BDT 0/-
Product Details
Brand: INSIZE
Model: 5313-S407
Country Of Origin: China
Features:
Manual 360° Rotation: Features a dedicated rotation handle for tactile, precise control when inspecting parts from all angles (0°, 90°, 180°, 270°).
45° Mirror System: Uniquely designed to view the internal walls of holes and the sides of convex surfaces.
Standalone System: Includes a 13.3" LCD monitor and built-in software; no external PC is needed.
High-Definition Imaging: 1080P resolution at 60fps for clear, detailed visuals.
Precision Positioning: Comes standard with an X-Y metal stage.
Easy Data Capture: Take photos and videos and save them directly to a USB flash drive.
| Sensor: | 1/2.8" CMOS, 2M Pixel |
| Resolution: | 1920×1080 (60fps) |
| Magnification: | 18X~120X |
| View Angle: | 45° |
| Dimensions: | 570×300×430mm |
| Net Weight: | 10kg |
The INSIZE 5313-S407 Manual 3D Rotation Microscope is a specialized, standalone optical inspection system designed to view the sides and internal walls of complex parts. Utilizing a unique 45° mirror working principle combined with a 360° manually operated rotating lens, it allows operators to easily inspect convex objects, threaded holes, and deep cavities that standard microscopes cannot reach.
Equipped with a high-definition 1920x1080 CMOS sensor and an included 13.3" LCD monitor, it delivers crisp 1080P imagery at 60fps. The system operates entirely without a computer, controlled via the included mouse. A dedicated illumination controller manages the LED lighting for optimal visibility. The 0.7X~4.5X step-zoom lens (yielding 18X~120X overall magnification) and the X-Y metal stage ensure precise positioning and focus. Users can easily capture photos and videos, saving them directly to the included 16G USB flash disk.
INSIZE 5313-S407 Manual 3D Rotation Microscope – Complete Hole Wall Inspection System
Overcome the limitations of standard upright microscopes with the INSIZE 5313-S407 Manual 3D Rotation Microscope. Designed for advanced quality control, precision engineering, and electronics manufacturing, this innovative standalone system utilizes a 45° mirror and a manually operated 360° rotating lens to thoroughly inspect the walls of holes, threads, and convex surfaces.
Key Features & Benefits:
-
See What Others Can't: The unique optical design uses a 45° mirror to direct the view sideways, allowing you to inspect the internal walls of deep holes, cross-holes, and complex cavities. The manual rotation handle lets you smoothly pan around the entire circumference with tactile precision.
-
High-Definition Standalone Display: Equipped with a 1/2.8" CMOS sensor, it outputs crisp 1080P resolution at 60fps onto the included 13.3" LCD monitor. The system operates entirely without a computer, controlled via an intuitive mouse interface.
-
Precision Optics: Features a 0.7X~4.5X step-zoom lens that, combined with the 13.3" display, delivers an overall magnification range of 18X to 120X with a focus distance of 20mm.
-
Integrated X-Y Stage: Includes a precise X-Y metal stage for accurate positioning of the workpiece under the rotating lens.
-
Easy Data Management: Capture high-resolution images or record video directly to the included 16G USB flash disk for documentation and analysis.
