Manual Vision Measuring Systems (Standard Type)
BDT 0/-
Product Details
Brand: INSIZE
Model: ISD-V150A
Country Of Origin: China
Features:
Manual Precision Control: Offers tactile, manual X/Y stage movement ideal for operators who prefer direct control.
High-Resolution Imaging: Equipped with a color CCD camera and a 0.7X~4.5X zoom lens for clear, detailed inspection.
Compact & Stable: A relatively compact benchtop footprint (560×540mm) with a solid 100kg build for vibration resistance.
Expandable Capability: Can be upgraded with Renishaw touch probes for 3D measurement or a coaxial light lens.
Complete Turnkey Kit: Comes standard with a computer, software, calibration tools, and a foot switch.
| Measuring Range (X×Y×Z): | 150×100×150mm |
| Resolution: | 0.5µm |
| Accuracy: | ≤(2.5+L/100)µm |
| Max. Workpiece Weight: | 20kg |
| Drive Method: | Manual |
| Dimensions: | 560×540×850mm |
| Net Weight: | 100kg |
The INSIZE ISD-V150A Manual Vision Measuring System is a robust, precision optical metrology instrument designed for accurate 2D non-contact dimensional inspection. As a Standard Type model, it features manual X and Y stage control, providing operators with tactile precision for fine positioning. The system is equipped with a 1/3" color CCD camera and a 0.7X~4.5X zoom objective, delivering clear, magnified images (up to 184X on a 21.5" monitor) for inspecting intricate features.
Built with a solid structure weighing 100kg, it ensures excellent stability during measurement. The machine provides a 150×100×150mm measuring range and a high resolution of 0.5µm. It features adjustable LED illumination for both surface and contour lighting, ensuring optimal contrast for various materials. The ISD-V150A comes as a complete turnkey package, including a computer, advanced measurement software, a calibration glass chart, and a foot switch. Additionally, the system can be expanded into a 3D measuring tool with optional Renishaw touch probes or upgraded with a coaxial light lens for highly reflective surfaces.

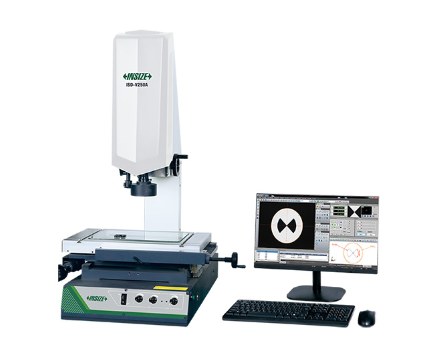

INSIZE ISD-V150A Manual Vision Measuring System – Precision Benchtop Optical Metrology
Achieve accurate, non-contact 2D measurements with the INSIZE ISD-V150A Manual Vision Measuring System. Designed for quality control labs, tool rooms, and manufacturing floors, this standard benchtop video measuring machine combines a high-quality optical system with manual stage control, offering a reliable and cost-effective solution for inspecting small precision components.
Key Features & Benefits:
-
Tactile Manual Control: The manual X and Y axis drive gives operators precise, hands-on control over the 150×100mm measuring stage, which supports workpieces up to 20kg with a resolution of 0.5µm.
-
Clear Optical Imaging: Equipped with a 0.7X to 4.5X zoom objective and a 1/3" color CCD camera, providing magnification up to 184X (on a 21.5" monitor) for detailed edge and surface inspection.
-
Versatile Illumination: Features adjustable LED lighting for both surface and contour observation, ensuring optimal contrast for a wide variety of parts, from metal stampings to plastic moldings.
-
Expandable for 3D: Easily upgrade the system with an optional Renishaw touch probe (ISD-V-PROBE) to perform 3D measurements, or add a coaxial light lens to inspect highly reflective or flat surfaces.
-
Complete Turnkey Package: Standard delivery includes the main unit, a computer with pre-installed software, a calibration glass chart, clay, a foot switch, and an anti-dust cover.
