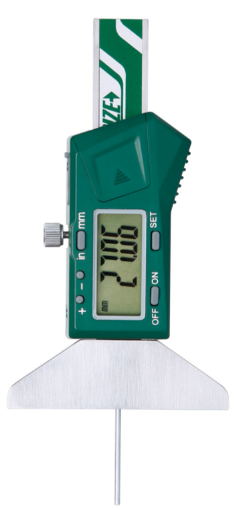

MINI DIGITAL DEPTH GAUGE WITH ROUND BAR
BDT 18,062/-
Product Details
Brand: INSIZE
Model: 1140-25
Country Of Origin: China
Features:
Non waterproof
Measure depth of small groove and hole
Resolution: 0.01mm/0.0005"
Buttons: on/off, set, mm/inch, preset (+, -)
Automatic power off, move the digital unit to turn on power
Battery CR2032
Made of stainless steel
| Type: | Mini Digital Depth Gauge with Round Bar |
| Range: | 0-25mm / 0-1" |
| Accuracy: | ±0.02mm |
| Resolution: | 0.01mm / 0.0005" |
| Material: | Stainless steel |
| Battery: | CR2032 |
| Buttons: | on/off, set, mm/inch, preset (+, -) |
| Data Output: | Yes (data interface) |
| Wireless Transmitter: | Optional (7315-25, receiver required) |
| Waterproof: | No |
| Dimensions (L/h): | 114mm / 20mm |
The INSIZE 1140-25 Mini Digital Depth Gauge with Round Bar is a compact, precision measuring instrument designed for accurately measuring the depth of small grooves and holes. As part of the 1140 Series, it features a round bar (Ø1.6mm) that allows access to narrow and hard-to-reach areas. Made of durable stainless steel, this depth gauge offers a measuring range of 0-25mm (0-1") with an accuracy of ±0.02mm and a resolution of 0.01mm/0.0005". It includes buttons for on/off, set, mm/inch, and preset (+/-) functions, along with automatic power-off (reactivated by moving the digital unit) and a CR2032 battery. The gauge includes a data interface and is compatible with an optional wireless transmitter (7315-25, receiver required). It is non-waterproof and ideal for industrial, automotive, and quality control applications requiring precise depth measurement in small features.
INSIZE 1140-25 Mini Digital Depth Gauge – Small Groove & Hole Depth Measurement
Measure the depth of small grooves and holes with precision using the INSIZE 1140-25, a compact mini digital depth gauge designed for access to narrow and hard-to-reach features. As part of the 1140 Series, this gauge features a round bar (Ø1.6mm) and is ideal for industrial, automotive, and quality control applications.
Key Features & Benefits:
-
Compact Design: Specifically designed for measuring the depth of small grooves and holes.
-
Round Bar Probe: Features a Ø1.6mm round bar for access to narrow openings.
-
High Resolution: Features 0.01mm/0.0005" resolution for precise measurements.
-
High Accuracy: Delivers ±0.02mm accuracy for reliable results.
-
Durable Construction: Made of stainless steel for long-lasting performance in demanding environments.
-
User-Friendly Functions: Includes on/off, set, mm/inch, and preset (+/-) buttons.
-
Automatic Power Off: Saves battery life, with power restored by moving the digital unit.
-
Data Interface: Supports data output for recording and analysis.
-
Wireless Compatibility: Compatible with optional wireless transmitter (7315-25, receiver required).
-
Reliable Power: Powered by a CR2032 battery.
-
Non-Waterproof: Designed for dry measurement environments.
-
Part of a Versatile Series: The 1140 Series includes models with ranges from 0-25mm up to 0-200mm, plus built-in wireless options (WL models).
