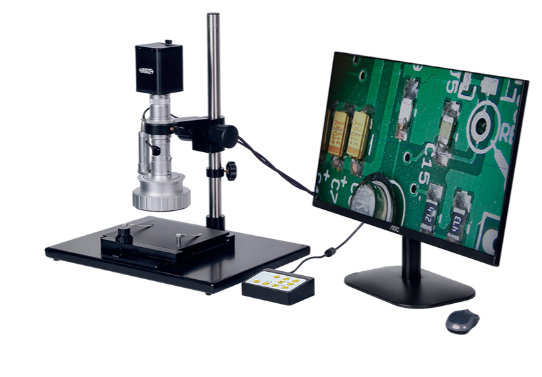

Motorized 3D Rotation Microscope
BDT 0/-
Product Details
Brand: INSIZE
Model: 5301-D400
Country Of Origin: China
Features:
1080P high-definition 3D image
Take pictures and videos, save to USB flash disk
Automatic white balance and exposure
Brightness, contrast ratio and gain are adjustable
| Sensor: | 1/2.8" CMOS, 2M Pixel |
| Resolution: | 1920×1080 (60fps) |
| Magnification: | 15X~100X |
| Rotation Speed: | 2~4RPM |
| View Angle: | 45° |
| Dimensions: | 570×300×430mm |
| Net Weight: | 10kg |
The INSIZE 5301-D400 Motorized 3D Rotation Microscope is a specialized, standalone optical inspection system designed to view the sides and internal walls of complex parts. Utilizing a unique 45° mirror working principle combined with a motorized 360° rotating lens, it allows operators to seamlessly inspect convex objects, threaded holes, and deep cavities that standard microscopes cannot reach.
Equipped with a high-definition 1920x1080 CMOS sensor and a dedicated 21.5" LCD monitor, it delivers crisp 1080P 3D imagery. The system is completely standalone, operated via the included mouse and a dedicated rotation controller, which manages the rotation speed (2~4RPM), direction, illumination, and zoom. The 0.7X~4.5X step-zoom lens (yielding 15X~100X overall magnification) and independent LED lighting ensure excellent visibility. Users can easily capture photos and videos, saving them directly to the included USB flash disk.
INSIZE 5301-D400 Motorized 3D Rotation Microscope – Complete Hole Wall Inspection System
Overcome the limitations of standard microscopes with the INSIZE 5301-D400 Motorized 3D Rotation Microscope. Designed for advanced quality control, precision engineering, and electronics manufacturing, this innovative standalone system utilizes a 45° mirror and a motorized rotating lens to thoroughly inspect the walls of holes, threads, and convex surfaces.
Key Features & Benefits:
-
See What Others Can't: The unique optical design uses a 45° mirror to direct the view sideways, allowing you to inspect the internal walls of deep holes, cross-holes, and complex cavities. The motorized 360° rotation lets you smoothly pan around the entire circumference.
-
Ergonomic Controller: Comes with a dedicated hardware controller that puts complete command at your fingertips. Easily adjust rotation speed (2~4RPM), change rotation direction, control the LED illumination, and adjust the zoom without ever touching the microscope.
-
High-Definition Standalone Display: Equipped with a 1/2.8" CMOS sensor, it outputs crisp 1080P resolution at 60fps onto the included 21.5" LCD monitor. The system operates entirely without a computer, controlled via an intuitive mouse interface.
-
Precision Optics: Features a 0.7X~4.5X step-zoom lens that, combined with the 21.5" display, delivers an overall magnification range of 15X to 100X with a focus distance of 40mm.
-
Integrated X-Y Stage: Includes a precise X-Y metal stage for accurate positioning of the workpiece under the rotating lens.
-
Easy Data Management: Capture high-resolution images or record video directly to the included 16G USB flash disk for documentation and analysis.
