Motorized Zoom 4k Measuring Microscope
BDT 0/-
Product Details
Brand: INSIZE
Model: 5326-S112
Country Of Origin: China
Features:
4K high-definition image
Take pictures and videos, save to USB flash disk
Built-in measuring software
Automatic white balance and exposure
4K 60fps real-time display
Display actual magnification
Display cross hair
Automatic zoom-in/zoom-out observation
| Sensor: | 1/1.8" CMOS, 8M Pixel |
| Resolution: | 3840Ã2160 (60fps) |
| Magnification: | 23.2X~232.2X |
| Zoom Ratio: | 10:1 |
| Output: | HDMI / USB / LAN |
| Dimensions: | 330Ã300Ã318mm |
| Net Weight: | 15.3kg |

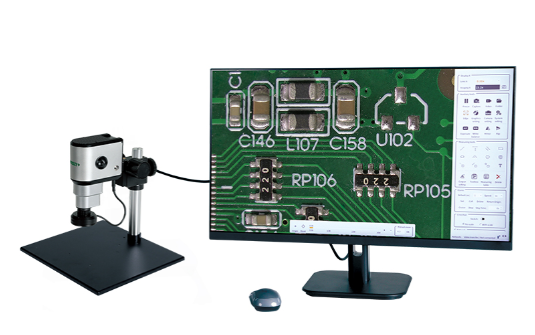

The INSIZE 5326-S112 Motorized Zoom 4K Measuring Microscope is a premium, standalone optical inspection system designed for exceptional clarity and precision. Featuring an 8M pixel sensor, a 10:1 motorized zoom lens (0.3X~3X), and a brilliant 27-inch 4K LCD monitor, it delivers ultra-high-definition images at a smooth 60fps.
Equipped with a 4K apochromatic lens, it eliminates chromatic aberration for true-to-life colors and sharp edges. The system offers the unique ability to connect to a display and a computer simultaneously, utilizing both built-in LCD software and advanced PC software for comprehensive measurement and analysis. The motorized zoom allows for automatic zoom-in/zoom-out observation cycles, and the system accurately displays the actual magnification and customizable crosshairs. Users can easily capture images/videos to a USB drive and perform precise measurements across a wide view field (up to 25x14mm).
INSIZE 5326-S112 Motorized 4K Measuring Microscope – Ultra-HD Precision Inspection
Experience the pinnacle of digital microscopy with the INSIZE 5326-S112 Motorized Zoom 4K Measuring Microscope. Designed for advanced quality control, electronics inspection, and precision engineering, this cutting-edge system combines a high-resolution 8M pixel sensor with a motorized apochromatic zoom lens and a stunning 27-inch 4K display to deliver unprecedented image clarity and measurement accuracy.
Key Features & Benefits:
-
Ultra-High Definition 4K Imaging: The 1/1.8" CMOS sensor outputs breathtaking 3840x2160 resolution at 60fps. The 4K apochromatic lens ensures edge-to-edge sharpness and true color reproduction with zero chromatic aberration.
-
Motorized Zoom & Automation: The 10:1 motorized zoom lens (0.3X~3X) provides a massive magnification range of 23.2X to 232.2X. It features automatic zoom-in/zoom-out observation, automatic white balance, and exposure, making inspections faster and more repeatable.
-
Dual Mode Operation: Uniquely designed to be connected to the included 27" 4K LCD for standalone operation and a PC simultaneously. Use the built-in software for quick on-screen measurements or the advanced PC software for data logging and complex analysis.
-
Precision Measurement Tools: The included software features assist tools, measuring tools, and the ability to display actual magnification and adjustable crosshairs on the screen. Measurements achieve accuracy as high as ±4µm at 3X magnification.
-
Complete Turnkey Kit: Comes fully equipped with the main unit and stand, LED ring illumination, 27" LCD, mouse, calibration plate, 16GB USB flash disk, and all necessary cables.
